Sewage Pumping Station JTDual 2 inch (twin Guide Rail)

(1)

£3,499.99

Inc Tax £4,199.99

JTDual Guide Rail Packaged Pumping Station in 2inch [Also available in 3 inch check with office] Rigged twin pump station suitable for all applications, domestic and commercial for foul, sewage and storm water, comes in a 1000mm Diameter

You will earn 4199 points with this purchase

DetailsReviewsSpecifications

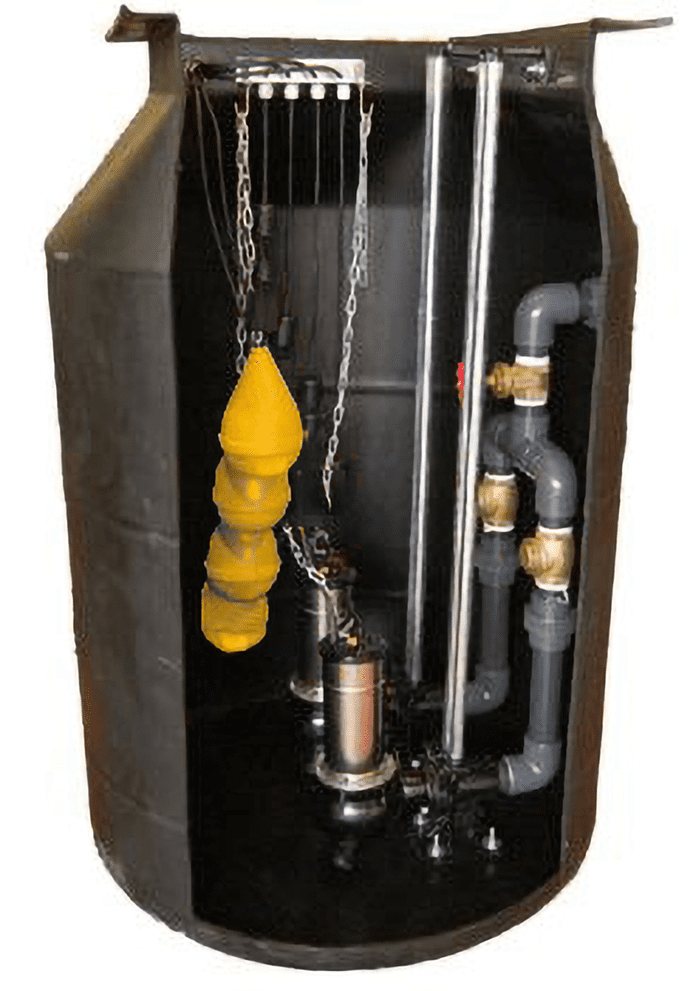

The JTDual 2" with Twin Guide Rails is a Pre-assembled ready for use automatic packaged pumping station.

The JTDual 2" is a pre-assembled ready for use automatic pump station particularly suitable when the water from drains is collected at lower than the main sewer. The standard pumping station consists of Vortex submersible pumps and come complete with duty assist pump, for peace of mind

Pump Features

Motor casing in stainless steel Volute pump in cast iron, stainless steel shaft Engine oil bath class F, 10m cable, built-in capacitor (to phase) Double seals, lip seals and reinforced carbon ceramic mechanical seal

Single-phase models with or without float Immersion depth: 10m Front outlet is ideal for installations with guide rail

10 meter cable

2 x submersible pumps

8m Head

50mm solid handling

Available in 3 phases

Tank Features

1 x Polyethylene tank

1170L or 1570L or 1690L Capacity can be selected when ordering

1 x Pedestrian rated cover Or D400 40Ton Driveway cover 600mm x 600mm (extra)

1 x 110mm/160mm inlets to be drilled on site

2 x Pump stool

2 x Guide rails

1 x Dual control panel

1 x High Water Alarm

1 x internal pipe work

4 x float switches

2 x non-returns

Depth mm	Diameter mm	Capacity L	Size Inch	Call Office
1500	1000	1170	2
2000	1000	1570	2
1500	1200	1690	2	P.O.A
2000	1200	2250	2
2500	1200	2820	2	P.O.A
3000	1200	3390	2	P.O.A
1500	1500	2650	2	P.O.A
2000	1500	3500	2	P.O.A
2500	1500	4400	2	P.O.A.
3000	1500	5300	2	P.O.A

*note 1.2 x 2.5 & Bigger = 7 to 10 working day delivery*
