£3,999.99
Inc Tax £4,799.99
JTDual Guide Rail Packaged Pumping Station in 2 inches with twin Guide rails + twin pump station suitable for all applications, domestic and commercial, for foul, sewage, and storm water, comes in a 1000 mm diameter
You will earn 4799 points with this purchase

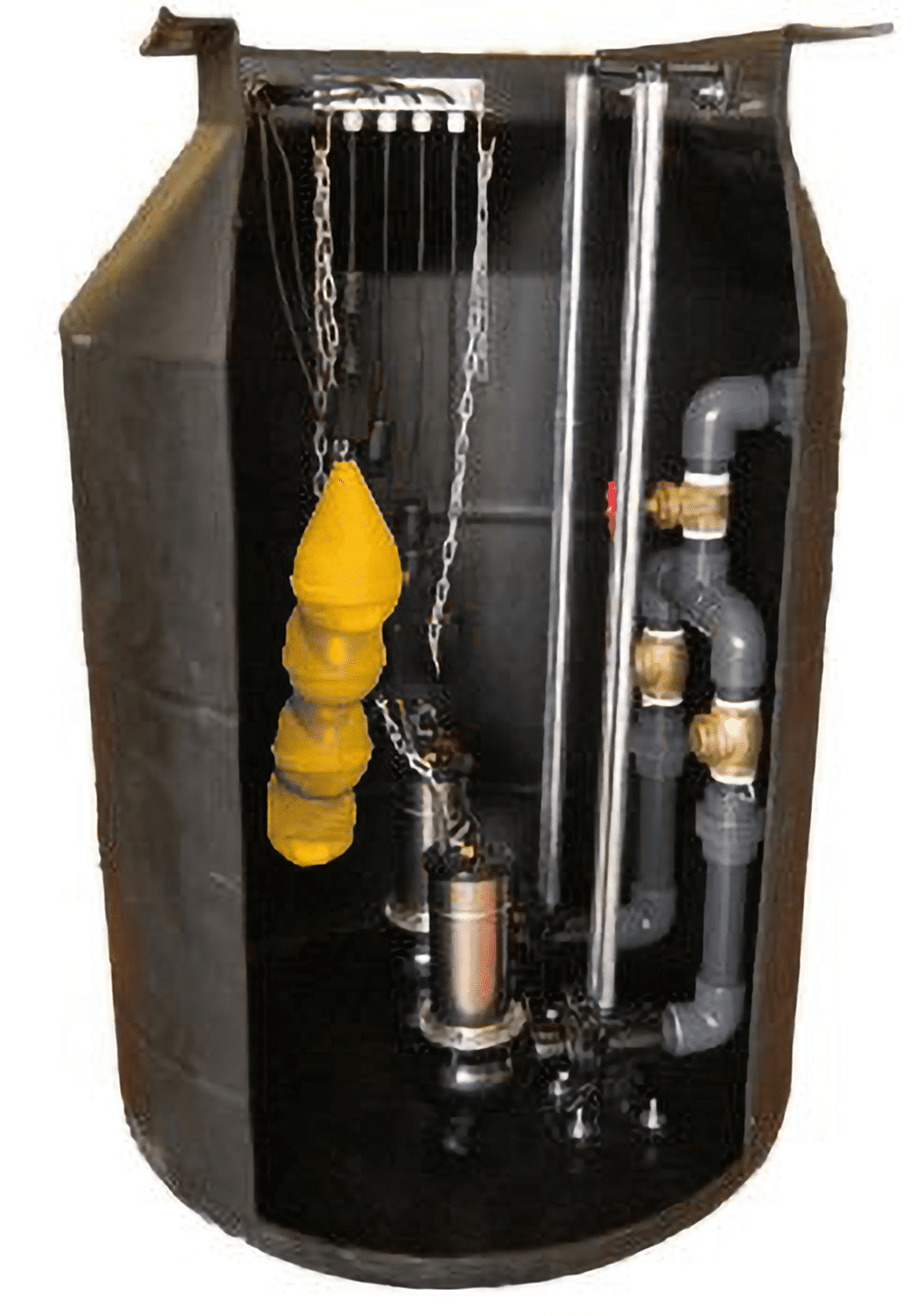

The JTDual 2" with Twin Guide Rails is a Pre-assembled ready for use automatic packaged pumping station.

The JTDual 2" is a pre-assembled ready for use automatic pump station particularly suitable when the water from drains is collected at lower than the main sewer. The standard pumping station consists of Vortex submersible pumps and come complete with duty assist pump, for peace of mind

Pump Features

Motor casing in stainless steel, Volute pump in cast iron, stainless steel shaft, Engine oil bath class F, 10m cable, built-in capacitor (to phase), Double seals, lip seals, and reinforced carbon ceramic mechanical seal

Single-phase models with or without float. Immersion depth: 10m. Front outlet is ideal for installations with guide rail

10 meter cable

2 x submersible pumps

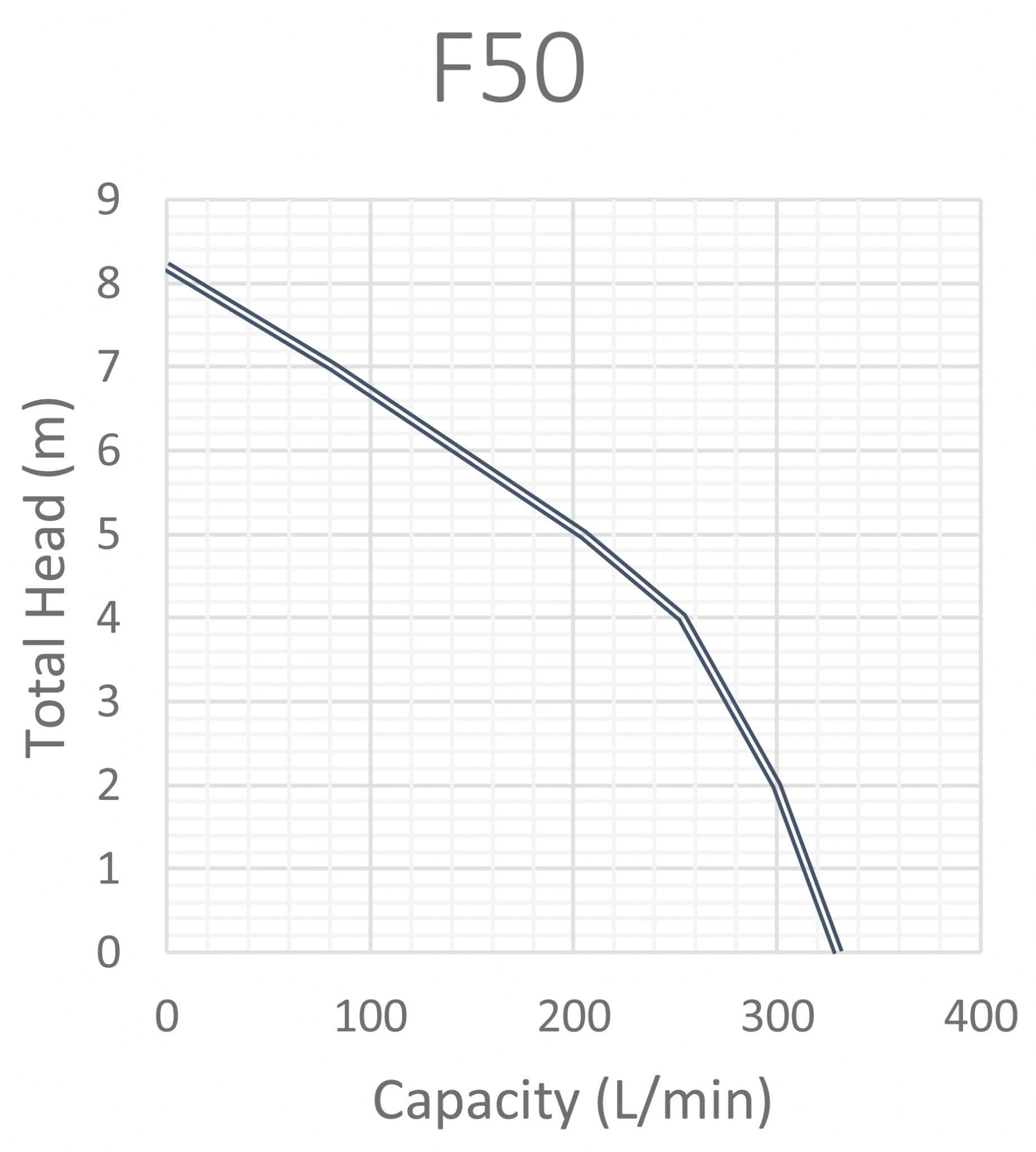

8m Head

50mm solid handling

Available in 3 phases

Tank Features

1 x Polyethylene tank

1 x 1m x 2m  1570L

1 x Pedestrian rated cover Or D400 40Ton Driveway cover 600mm x 600mm (extra)

1 x 110mm/160mm inlets to be drilled on site

2 x Pump stool

2 x Guide rails

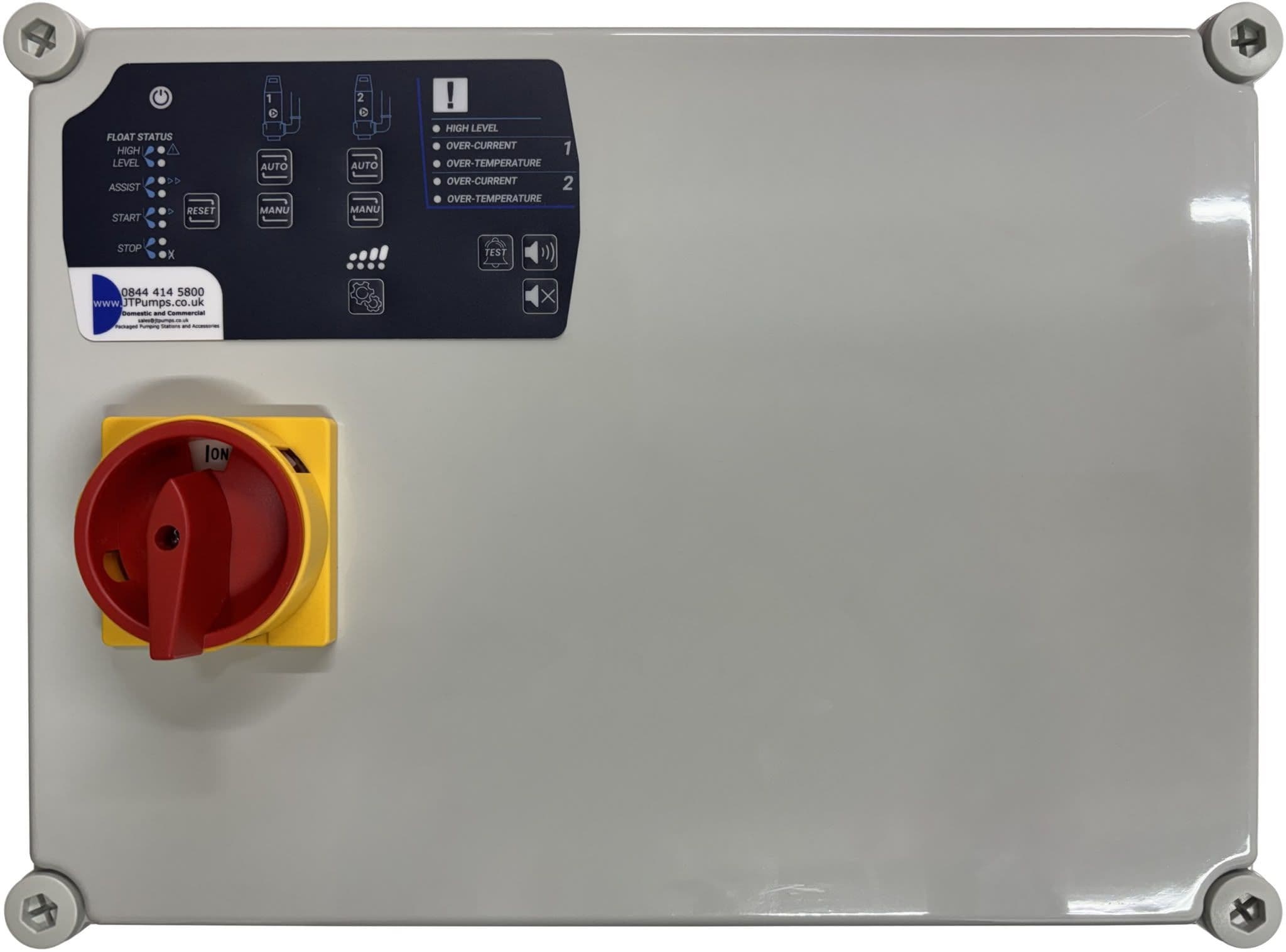

1 x Dual control panel (made in the UK)

1 x High Water Alarm

1 x internal pipe work

4 x float switches

2 x non-returns


Depth mm Diameter mm Capacity L Size Inch Call Office
1500 1000 1170 2
2000 1000 1570 2
1500 1200 1690 2 P.O.A
2000 1200 2250 2 P.O.A
2500 1200 2820 2 P.O.A
3000 1200 3390 2 P.O.A
1500 1500 2650 2 P.O.A
2000 1500 3500 2 P.O.A
2500 1500 4400 2 P.O.A.
3000 1500 5300 2 P.O.A

*note 1.2 x 2.5  & Bigger = 7 to 10 working day delivery*

Reviews

Write a review and let shoppers know what you think of this product.

Brand JTPumps
Weight 35kg
MPN JTDUAL501700DN
