Sewage Pumping Station JTDual 3 inch Twin Guide Rails up to 11m lift
Sewage Pumping Station JTDual 3 inch Twin Guide Rails up to 11m lift
Sewage Pumping Station JTDual 3 inch Twin Guide Rails up to 11m lift
Sewage Pumping Station JTDual 3 inch Twin Guide Rails up to 11m lift
Sewage Pumping Station JTDual 3 inch Twin Guide Rails up to 11m lift

Sewage Pumping Station JTDual 3 inch Twin Guide Rails up to 11m lift

£5,199.99
Inc Tax £6,239.99
JTDual Guide Rail Packaged Pumping Station in 3 inch Rigged twin pump station suitable for all applications, domestic and commercial for foul, sewage and storm water, comes in a 1000mm Diameter
You will earn 6239 points with this purchase

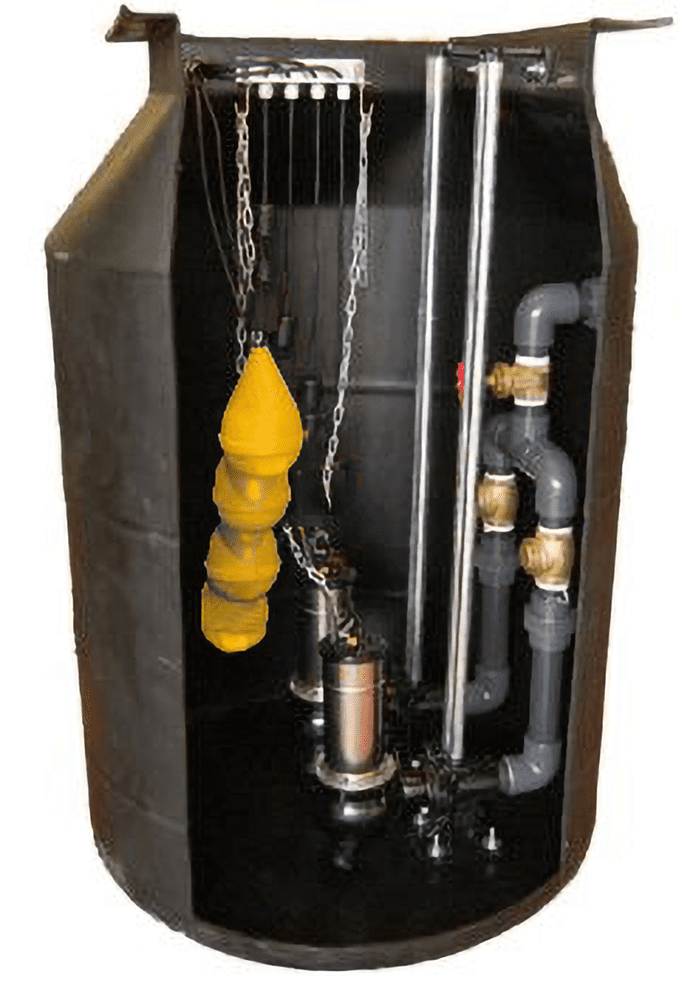

The JTDual 3" with Twin Guide Rails is a Pre-assembled ready for use automatic packaged pumping station.

The JTDual 3" is a pre-assembled ready for use automatic pump station particularly suitable when the water from drains is collected at lower than the main sewer. The standard pumping station consists of Vortex submersible pumps and come complete with duty assist pump, for peace of mind

Pump Features

Motor casing in stainless steel Volute pump in cast iron, stainless steel shaft Engine oil bath class F, 10m cable, built-in capacitor (to phase) Double seals, lip seals and reinforced carbon ceramic mechanical seal

Single-phase models with or without float Immersion depth: 10m Front outlet is ideal for installations with guide rail

10 meter cable

2 x submersible pumps

65mm solid handling

Available in 3 phases

Tank Features

1 x Polyethylene tank

1250L or 1700L   Capacity can be selected when ordering online call for rest of options

1 x Pedestrian rated cover Or D400 40Ton Driveway Cover 600mm x 600mm (extra)

1 x 110mm/160mm inlets to be drilled on site

2 x Pump stool

2 x Guide rails

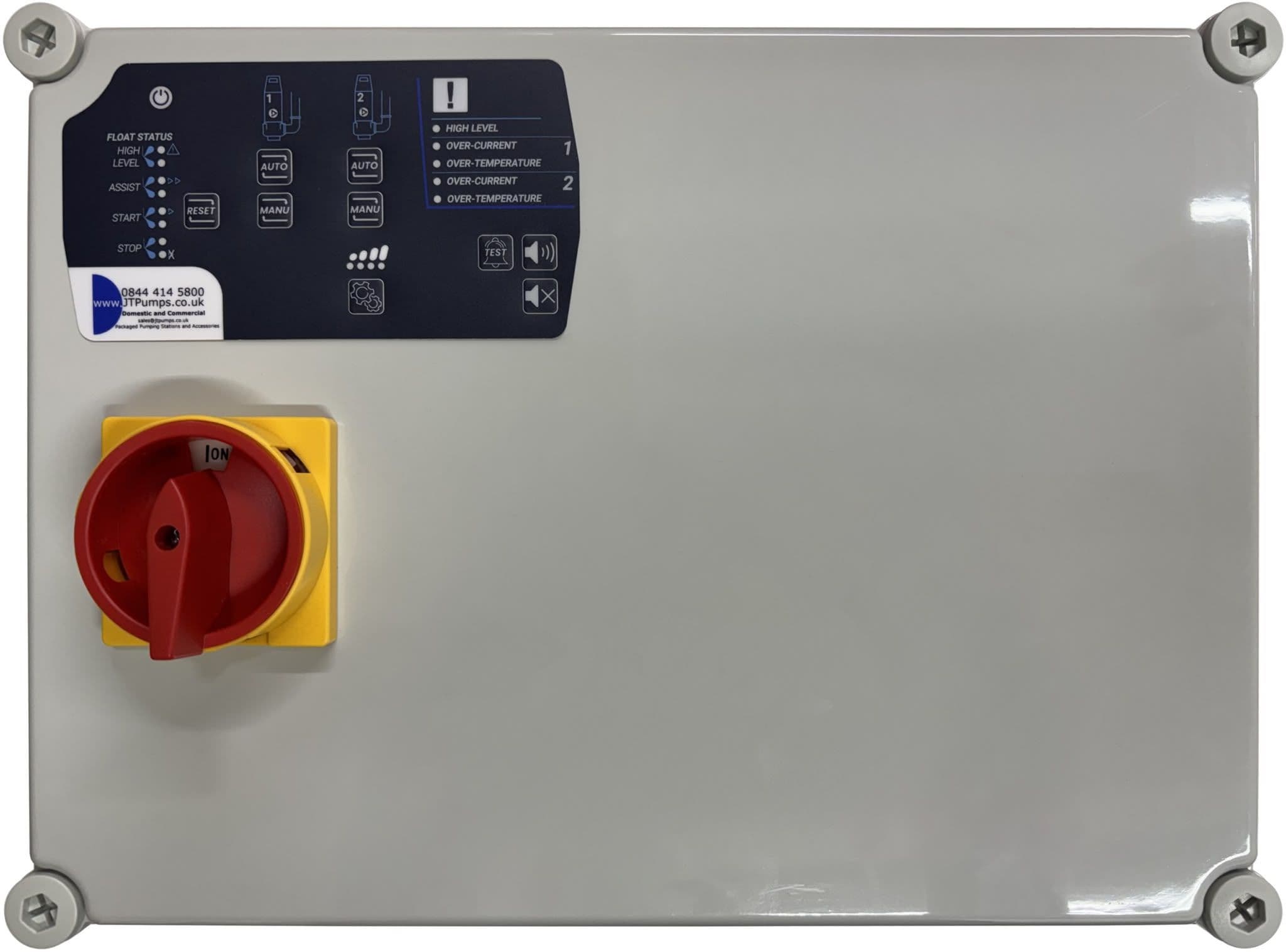

1 x Dual control panel

1 x High Water Alarm

1 x internal pipe work

4 x float switches

2 x non-returns


Depth mm Diameter mm Capacity L Size Inch Call Office
1500 1000 1250 3
2000 1000 1700 3
1500 1200 1690 3 P.O.A
2000 1200 2250 3 P.O.A
2500 1200 2800 3 P.O.A.
2000 1500 3500 3 P.O.A.
2500 1500 4400 3 P.O.A.
3000 1500 5300 3 P.O.A

*note 2m deep size of tank & Bigger = 4 to 15 working day delivery*

Reviews

Write a review and let shoppers know what you think of this product.

Brand JTPumps
Weight 35kg
MPN JTDual31250N
