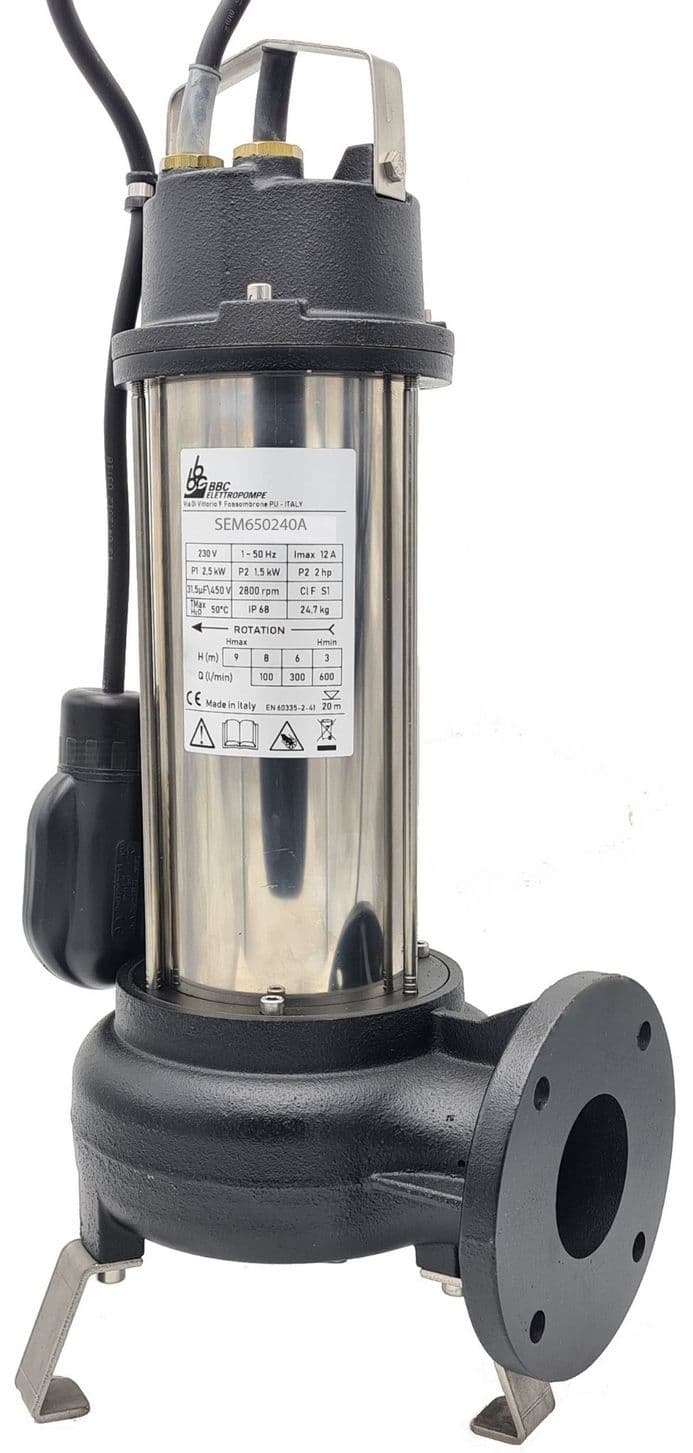

Semisom 650L 65mm solids 9m head

All New Semisom 650 Auto version comes with build in Capacitor so eayer to wire up just a 13 amp spur

Dimensions (mm)…. Height = Approx 580 with legs – 480 without
Dia = Approx 195

old still avaiable Semisom 650 submersible sewage pump float switch as standard, 10m power cable, 240v or 3 phase, 65mm solid handling with a 9m head


Pump Features Cast iron/Stainless steel construction Coolant filled motor Mechanical seal 10 metre cable 1 x submersible pumps 65mm solid handling 9m head Available in 3 phase

SEMISOM 650H
Guiderail submersible pump for dirty water and sewage
Available  in  230V  single  phase   and   400V  three phase   models,  Semison  650H   submersible  pumps have been designed  for guiderail installation only, on dirty water and  sewage  type applications.
They feature vortex impellers providing a 65mm dia. solids handling  capability.
• Nominal 1.5kW  (2HP)
• 230V = 12Amp - 400V = 6Amp
• Graphite/Ceramic Mechanical  seal
• Coolant filled asynchronous  motor
• Cast iron/Stainless construction
• 10 metre cable as standard
• 31.5µF Capacitor box with overload protector/reset
• Optional  float switch on single phase  version
• Weight only 22 Kg.
• Max. 35°C continuous - 45°C intermittent
• Max. 20 starts per hour • Max. immersion 20m
