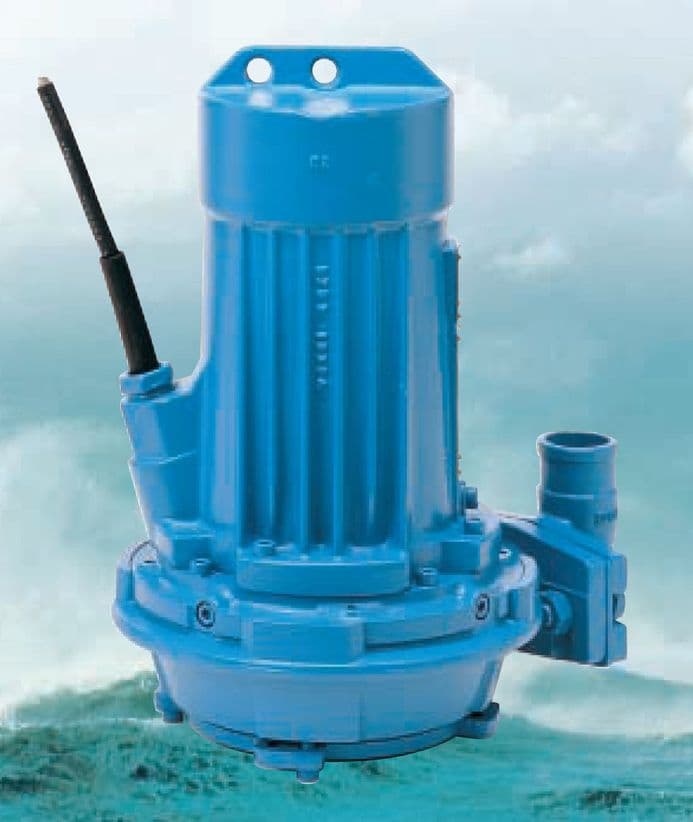

Robot RS Grinder Pumps

Robot RS Grinder Pumps

Robot Grinder pumps are suitable for applications small & large discharge pipes.

Robot RS Grinder submersible macerator pumps

Designed specifically for handling sewage and other waste water applications where the quantity of water does not allow for the use of large solids handling pipe work. Large solids are cut into smaller pieces that can be handled through pipes as small as 32mm.

High heads can be achieved with the grinder range of pumps.

The main parts of the cutting elements are located inside the cutting ring and are therefore kept away from any larger solids that cannot be cut, which helps prolong cutting element life.

Both the parts of the cutting element Rotating and stationary are manufactured from a special hardened stainless steel alloy which minimizes corrosion and ensures a longer life.

Optional extras include:-

Single phase motors: Available for the smaller models

Flame proof motors: certified to European standards WN 50014/18/19 (BS 5501), class EEx de IIB T3 or T4, and to American FMRC standard, class 1, division 1, groups C&DT4.

Seal leakage monitor: detects water ingress in both motor- and oil housing.

Thermostats: standard for all flameproof pumps and optional for all other pumps

Due to the large range of Robot RS Pumps

If you wish a replacement pump please send a photo on the Model plate and email it to sales@jtpumps.co.uk
