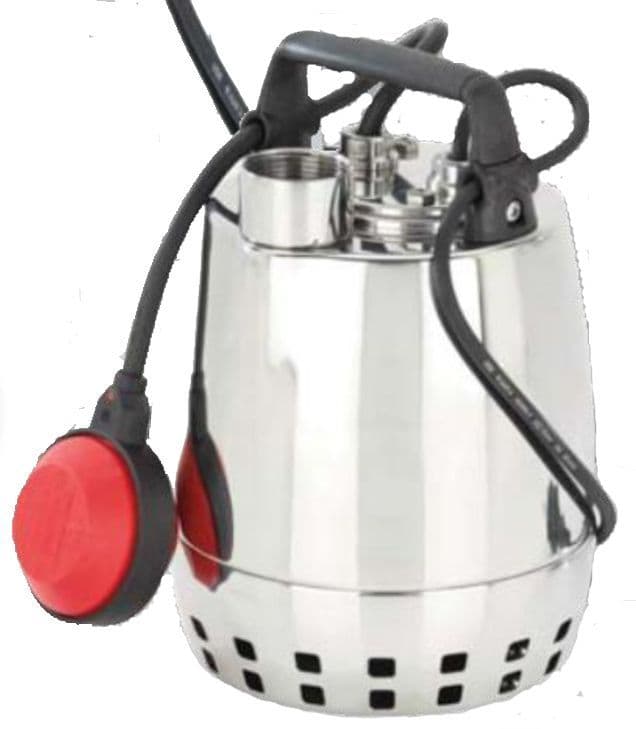

JTXRM9 Pump in chrome-nickel stainless

JTXRM 9

Construction
Single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port
Cable length 5m.
Vertical magnetic float switch.Auto (blue top on left)
Or Auto flow switch (red float)
JTXR: with open impeller

Applications
For clean water containing solids up to 10 mm grain size.
For draining rooms or or emptying tanks.
Extraction of water from ponds, streams or pits and for rainwater collection.
For irrigation purposes.
For basement drainge
For cellar drainage
For effuent drainge from treatment plants and septic tanks
For rainwater
For gray water, dirty or pollyuted water
For air conditioning condensate and dehumidifier water removal
Can be used with dishwashers washing machines

Operating conditions
Liquid temperature up to 50° C. / 122F
Maximum immersion depth: 5 m.
Minimum water level with float: 70 mm
Minimum water level manual operation:15 mm
Continuous duty.

Motor
2-pole induction motor, 50 Hz (n = 2900 rpm).
JTXR:  230 V with float switch and thermal protector.
Incorporated capacitor.
Insulation class F. Outlet 1 ¼” BSP
Protection IP X8 (for continuous immersion)
Double impregnation humidity-proof dry winding.
Constructed in accordance with:EN 60034-1; EN 60335-1, EN 60335-2-41.

Dimensions

Red  Float   (top of handle) H. 265mm  W. 176mm
Blue Float   (top of handle) H. 265mm  W. 176mm
