JTSingle325 L/min max Flow Suface/Storm Pumping Station

JTSingle 1000mm x 1000mm 785L Surface / Storm Water Packaged Pumping station comes with a Guide Rail & Automatic pump with max flow rate of 5.4 L/s suitable for all applications, domestic and commercial.

Surface/Storm Water Pumping Station is your ideal, Flood/Storm Defence APPROVED solution for managing high-volume surface and storm drainage where natural gravity flow isn't possible. This job-ready packaged pumping station is designed for easy installation in both domestic and commercial drainage applications, ensuring reliable water removal and flood relief.

• High Flow Capacity: Handles surface/storm water up to 5.4 litres per second.

• Fully Packaged: An easy-to-install, "job ready" system.

• Approved Defence: Specified Sump Pump System for reliable flood/storm relief.

• Versatile Use: Suitable for handling clean, dirty, or slightly polluted water.

The JTSingle 785 Surface/Storm Water Pumping Station is your ideal, Flood/Storm Defence APPROVED solution for managing high-volume surface and storm drainage where natural gravity flow isn't possible. This job-ready packaged pumping station is designed for easy installation in both domestic and commercial drainage applications, ensuring reliable water removal and flood relief.

• High Flow Capacity: Handles surface/storm water up to 5.4 litres per second.

• Fully Packaged: An easy-to-install, "job ready" system.

• Approved Defence: Specified Sump Pump System for reliable flood/storm relief.

• Versatile Use: Suitable for handling clean, dirty, or slightly polluted water.

The high Flow H series pumps have been designed to handle clean, dirty or slightly polluted water. Used for flood relief and Storm relief. Feature vortex impeller  Nominal 0.37kW (230V=4.2Amp) Cast iron/Stainless steel construction with float switch, Mechanical seal and lip seal Coolant filled motor 10 metre cable

Flood/Storm Defence APPROVED Specified Sump Pump System only @ JTPumps

FEATURES:
Engine oil bath, insulation class F Double seals, lip seals and reinforced carbon ceramic mechanical seal Power cable: 10 m neoprene Motor casing in stainless steel, 304 stainless steel open impeller Pump body in cast iron, 420 stainless steel shaft continuous service.

1 x Submersible Automatic Pump with Guide rail mounting
50mm Solid handling
8m Head

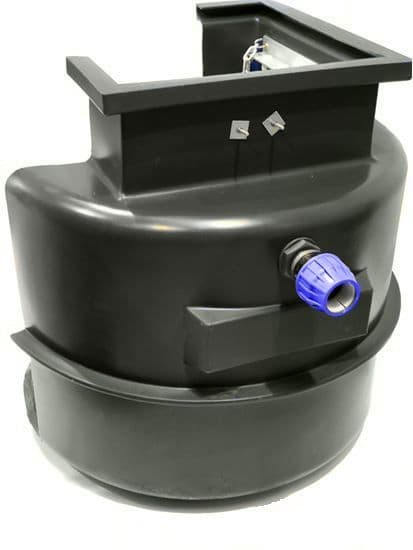

Tank Features

The robust, pre-assembled tank is designed for underground installation and includes critical features for stability and operational ease:

• Chamber Size: 1000mm x 1000mm polyethylene moulded chamber.

• Capacity: Large 785 litre capacity for adequate buffer storage.

• Anti-Flotation Device: Essential feature to eliminate chamber floating during high water table conditions.

• Easy Connections: 2"BSP threaded outlet for easy connection to MDPE pipework.

• Inlet: Supplied with 1no. 110mm seal (inlet to be drilled on site).

• Valve: Includes a Non-return valve to prevent backflow.

📞 Need a Different Size?

While this package is Job ready for Easy Installation, we offer a range of other size options to meet specific project demands.

Call JTPumps office for a quote on custom sizing and professional consultation for your commercial or domestic drainage requirements.

BS EN 12056-4:2000 Gravity drainage systems inside buildings and BS EN 752-6:1998 Drain and sewer systems outside buildings. BS EN 12050-1:2001 Waste water lifting plants for buildings and sites. All our pump stations are manufactured to the highest British Standards relevant to our industry.

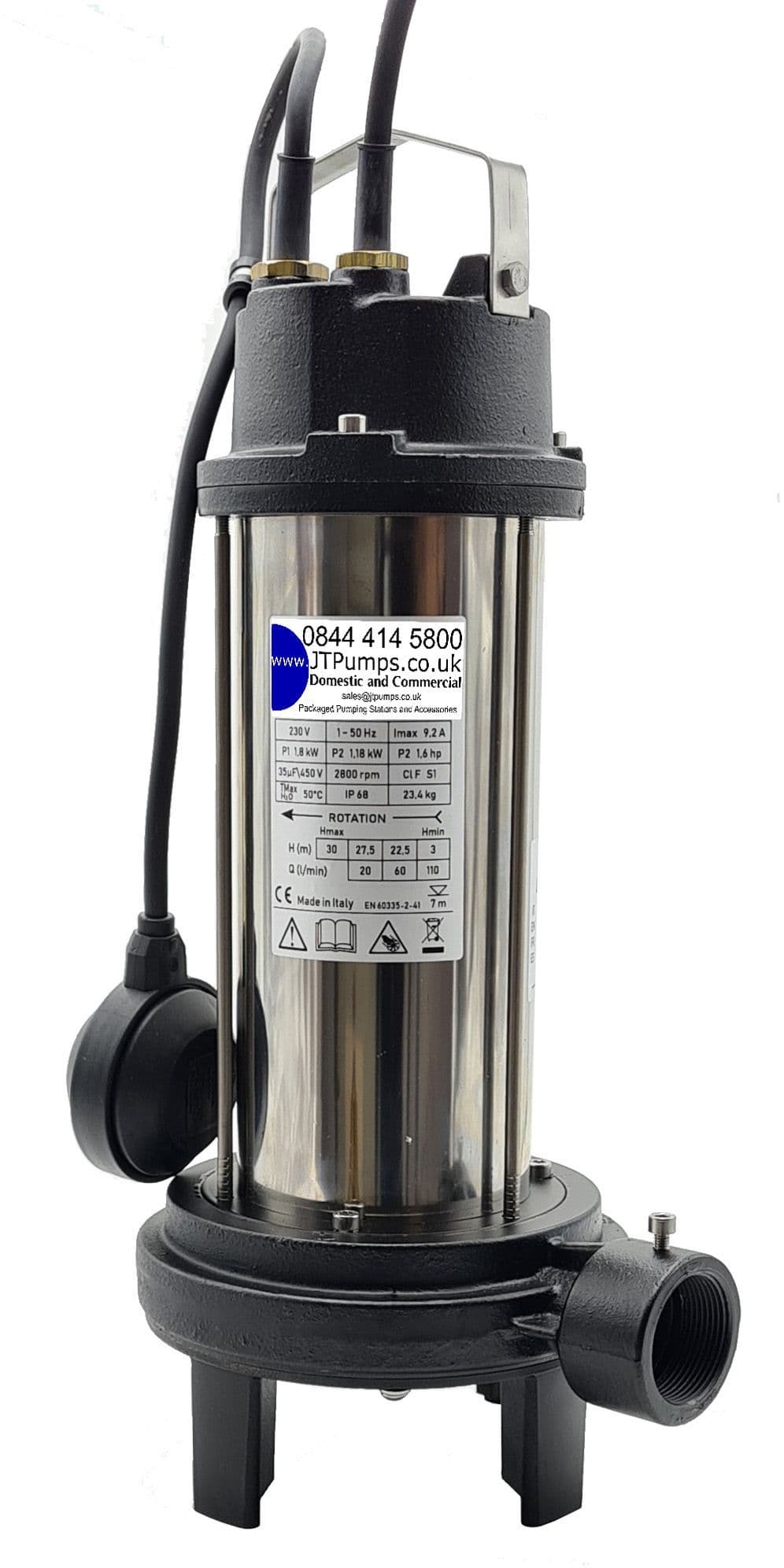

Pump Features

Cast iron/Stainless steel construction
Coolant filled motor
Mechanical seal
10 metre cable
Float switch as standard
8m head
50mm solid handling
Available in 3 phase

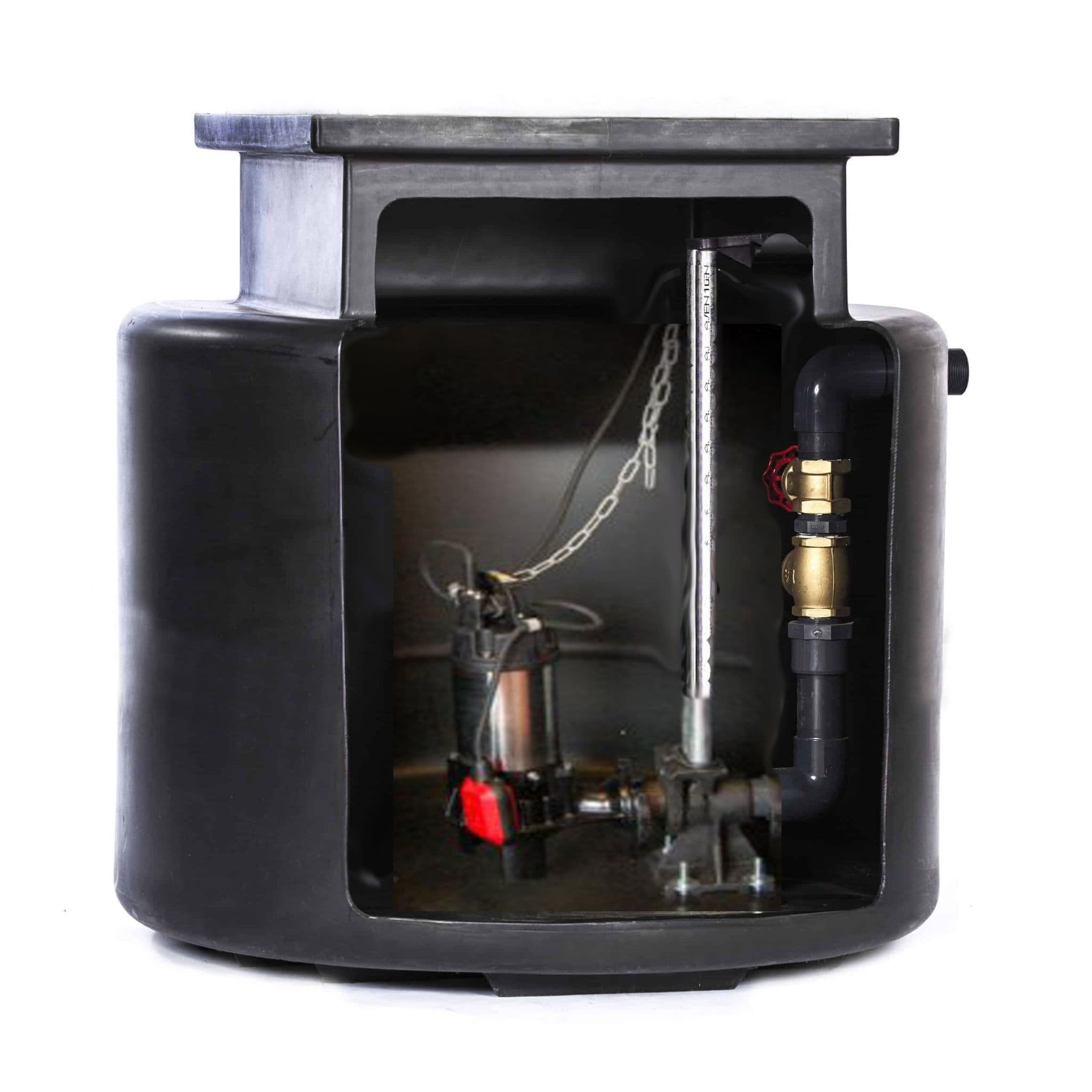

Tank Features

Polyethylene tank
785L  Capacity  can be selected when ordering
1 x Automatic pump with float switch
1 x Pedestrian rated cover or D400, 40Ton Driveway cover  (extra)
1 x 110mm/160mm inlets (to be drilled on site)
1 x Pump stool
1 x Guide rail
1 x Chain
1 x Non-return valve

Job ready for easy installation
