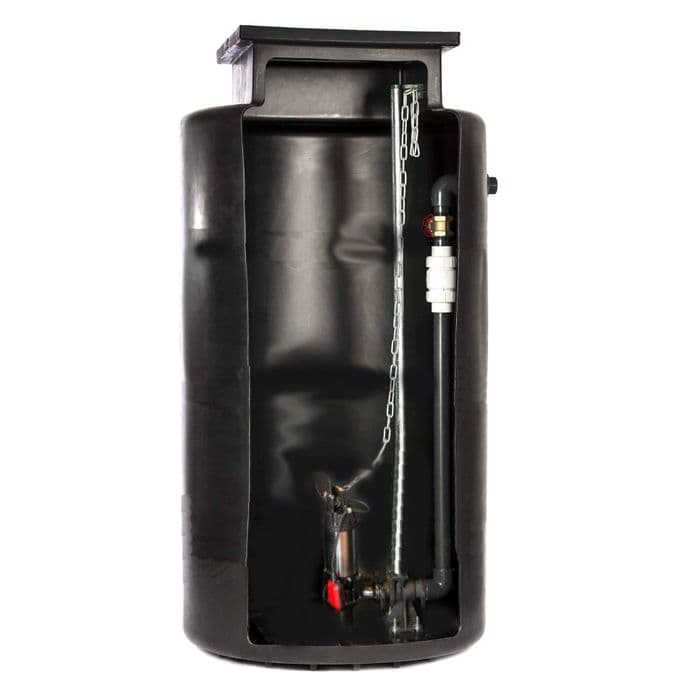

JTSingle Macerator 1700L Guide Rail Sewage Pumping Station 2 inch

£2,599.99

Inc Tax £3,119.99

Guide Rail Packaged Sewage Pumping Station in 2 inch Rigged Macerator pump station suitable for all applications, domestic and commercial for foul, sewage pumping. Single dwelings up to 10 people 1700L

You will earn 3119 points with this purchase

DetailsReviewsSpecifications

Macertator Pump Also comes in Dual Please call Office for Quote
Guide Rail Packaged Sewage Pumping Station in 2 inch Rigged pump station suitable for all applications, domestic and commercial for foul, sewage pumping. Single dwelings up to 10* peaple. (1700L Tank *Subject to invert and number of bed rooms in dwelling)

Single dwelings up to 10* peaple 1700L

Two size to choose to purchase online or more size listed below just call.

The JTSingle Rigged is a pre-assembled ready for use automatic pump station particularly suitable when the water from drains is collected at lower than the main sewer.

The standard pumping station consists of Heavy duty macerator submersible pump which cuts down to 5-8mm solid handling for peace of mind and free passage through the pipe

Pump Features

Heavy duty submersible sewage cutter (Macerator) impeller pumps allowing soft solids to be passed through the pump body to waste.
Single channel tungsten carbide tipped impeller capable of cutting soft organic solids
Cutting impeller had higher head then vortex impeller
Supplied as a free standing pump. Guide rails available for some models
Cast iron pump body, impeller, lower motor bearing/seal housing and motor top cover.
Stainless steel shaft and motor casing.
Twin mechanical seals, the lower seal is made of silicon carbide and the upper seal carbon/ceramic.
An extra lip seal is installed to help prevent abrasives such as sand, dirt and silt from entering the seal chamber.
Complete with 10 metres of power cable.
Float switch as standard
30m head
Macerator / Grinder / Chopper Pump

Tank Features

Polyethylene tank
1700L Capacity can be selected when ordering
1 x Pedestrian rated cover or D400 40 ton driveway cover (extra)
1 x 110mm/160mm inlets
1 x Guide rail
1 x Non-return valve

Please allow an extra day for delivery on this item
Job ready for easy installation

Depth mm	Diameter mm	Capacity L	Size Inch	Call Office
1500	1000	1250	2
2000	1000	1700	2
2000	1250	2450	2	P.O.A
2500	1250	3000	2	P.O.A.
2000	1500	3500	2	P.O.A.
2500	1500	4400	2	P.O.A.
3000	1500	5300	2	P.O.A
