JTSingle 1700 (1570L) Sewage Pumping Station 2 inch Single Guide Rail
£1,999.99
Inc Tax £2,399.99
JTSingle 1570L Guide Rail Packaged Sewage Pumping Station in 2 inch Rigged pump station suitable for all applications, domestic and commercial for foul, sewage pumping. Single dwellings up to 10/12 people. 5* to 6* bed houses Also suitable for pumping rainwater.
You will earn 2399 points with this purchase
JTSingle Rigged 1570L Guide Rail Packaged Sewage Pumping Station in 2 inch Rigged pump station suitable for all applications, domestic and commercial for foul, sewage pumping. Single dwellings up to 10/12* people. 5 to 6 bed houses (*Subject to invert and number of bed rooms in dwelling) Also suitable for pumping rainwater.

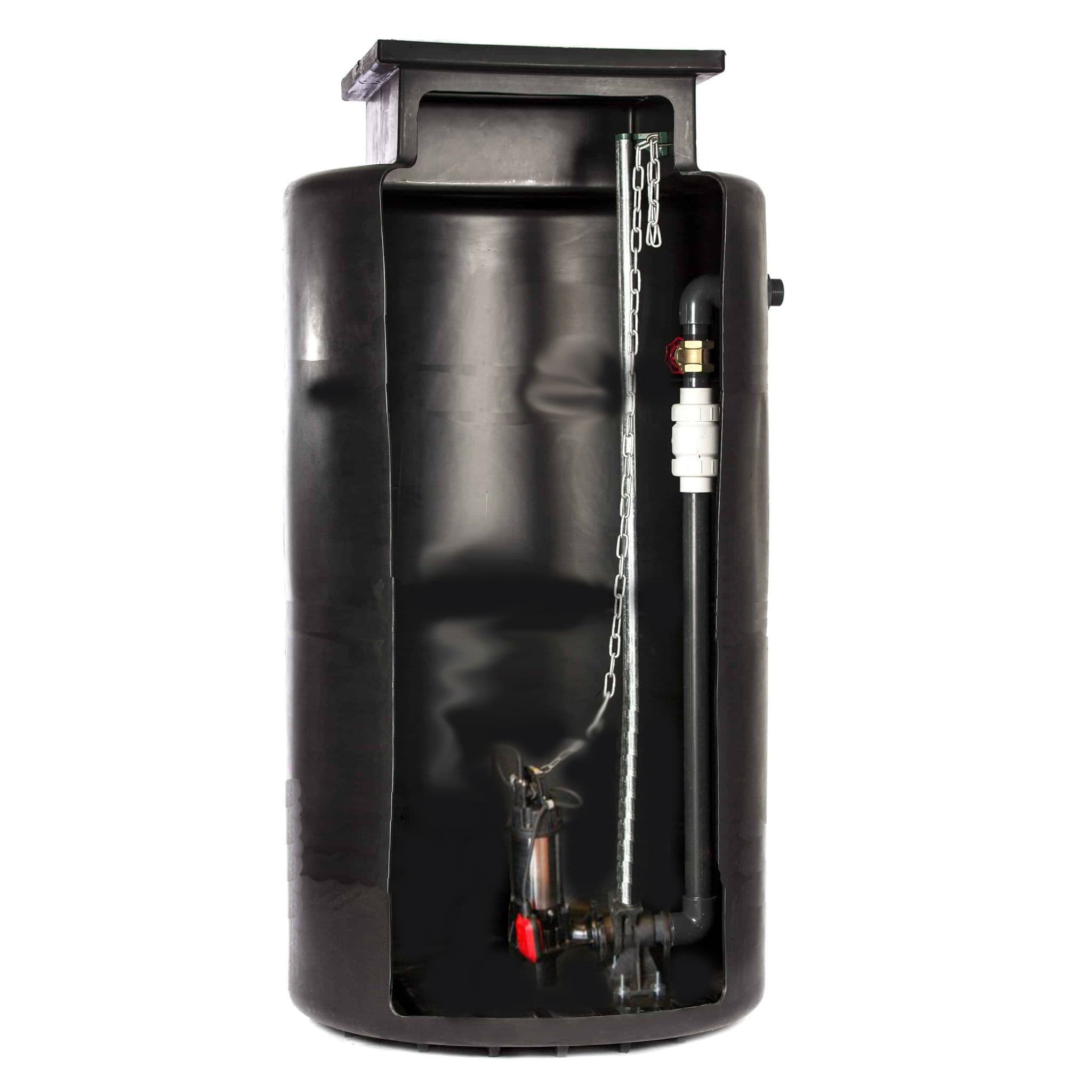

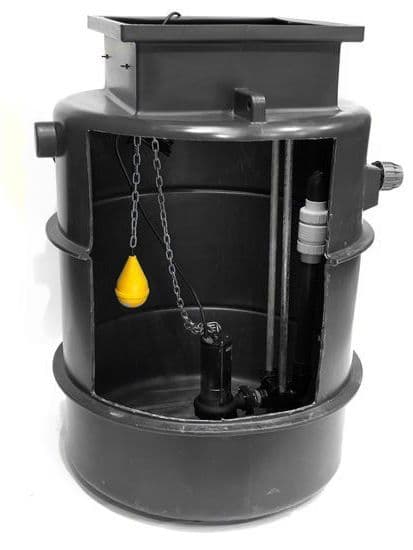

The Single Rigged is a pre-assembled ready for use automatic pump station particularly suitable when the water from drains is collected at lower than the main sewer.
The standard pumping station consists of the 2 inch submersible pump and come complete with 50mm solid handling for peace of mind
Pump Features
Cast iron/Stainless steel construction
Coolant filled motor
Mechanical seal
10 metre cable
Float switch as standard

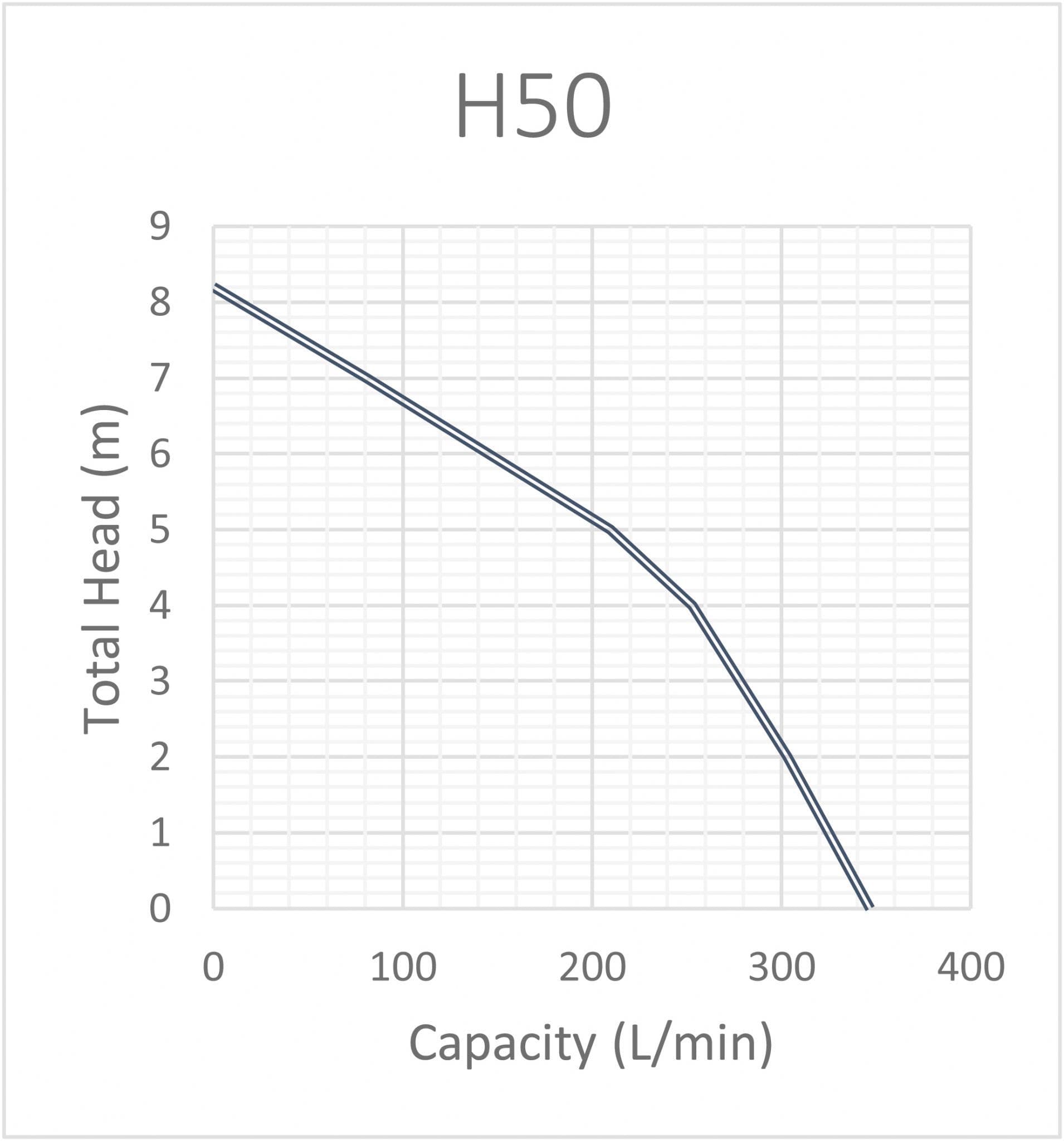

8m head
50mm solid handling
Available in 3 phase
Tank Features
Polyethylene tank
1570L Capacity can be selected when ordering
1 x Automatic pump with float switch
1 x Pedestrian rated cover or D400 40Ton Driveway cover (extra)
1 x 110mm/160mm inlets (to be drilled on site)
1 x Pump stool
1 x Guide rail
1 x Chain
1 x Non-return valve
Job ready for easy installation
Other sizes
The Single Rigged is a pre-assembled ready for use automatic pump station particularly suitable when the water from drains is collected at lower than the main sewer.
The standard pumping station consists of the 2 inch submersible pump and come complete with 50mm solid handling for peace of mind
BS EN 12056-4:2000 Gravity drainage systems inside buildings and BS EN 752-6:1998 Drain and sewer systems outside buildings. BS EN 12050-1:2001 Waste water lifting plants for buildings and sites. All our pump stations are manufactured to the highest British Standards relevant to our industry.
Pump Features
Cast iron/Stainless steel construction
Coolant filled motor
Mechanical seal
10 metre cable
Float switch as standard
8m head
50mm solid handling
Available in 3 phase
Tank Features
Polyethylene tank
1570L Capacity can be selected when ordering
1 x Automatic pump with float switch
1 x Pedestrian rated cover or D400 40Ton Driveway cover (extra)
1 x 110mm/160mm inlets (to be drilled on site)
1 x Pump stool
1 x Guide rail
1 x Chain
1 x Non-return valve
Job ready for easy installation
Other sizes
| Depth mm | Diameter mm | Capacity L | Size Inch |
| 1000 | 1000 | 785 | 2 |
| 2000 | 1000 | 1570 | 2 |
| Brand | JTPumps |
| Weight | 35kg |
| MPN | JTSingle1700NN |
You may also like
-

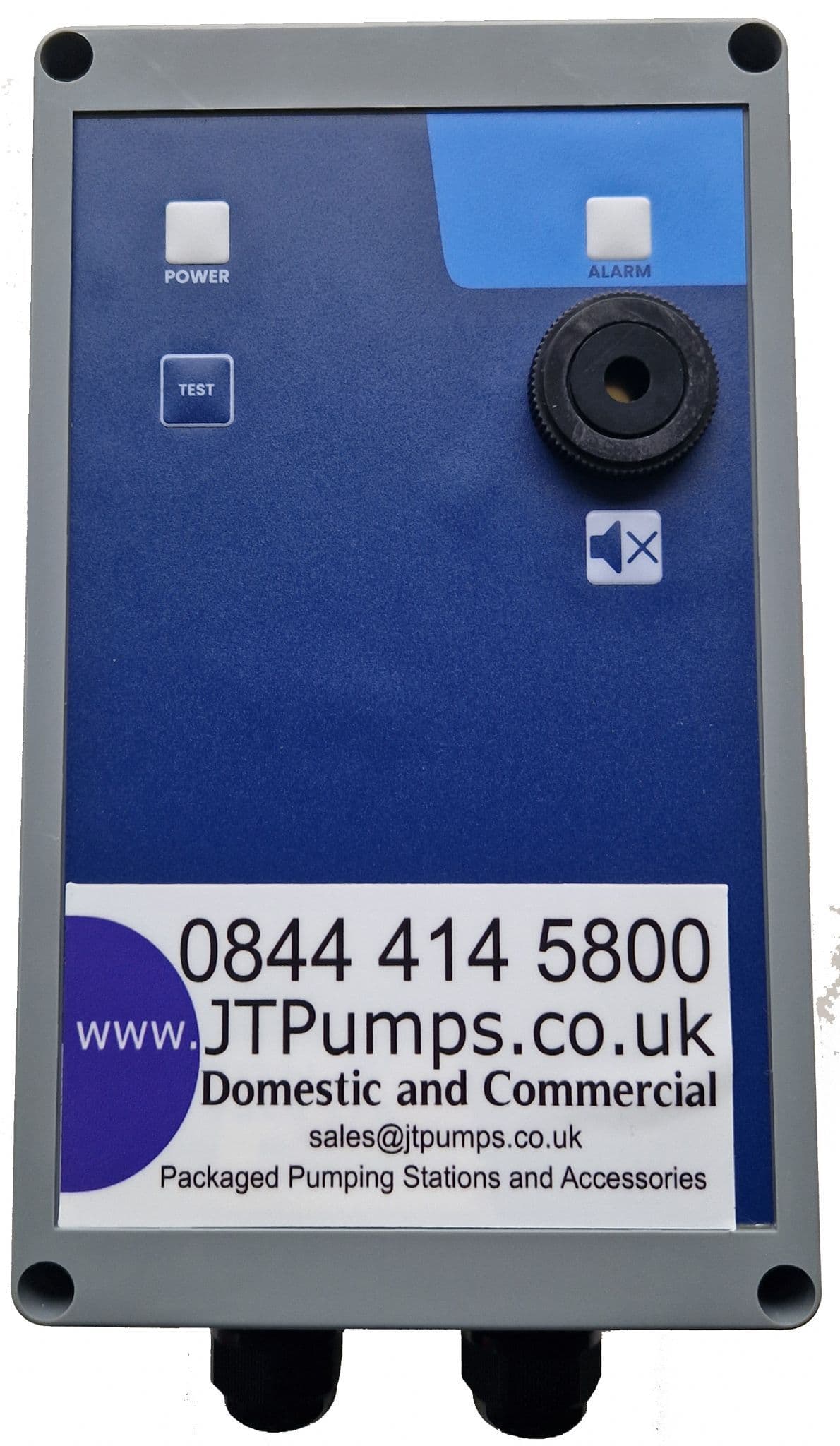

JT High Water Alarm IP55 rated
