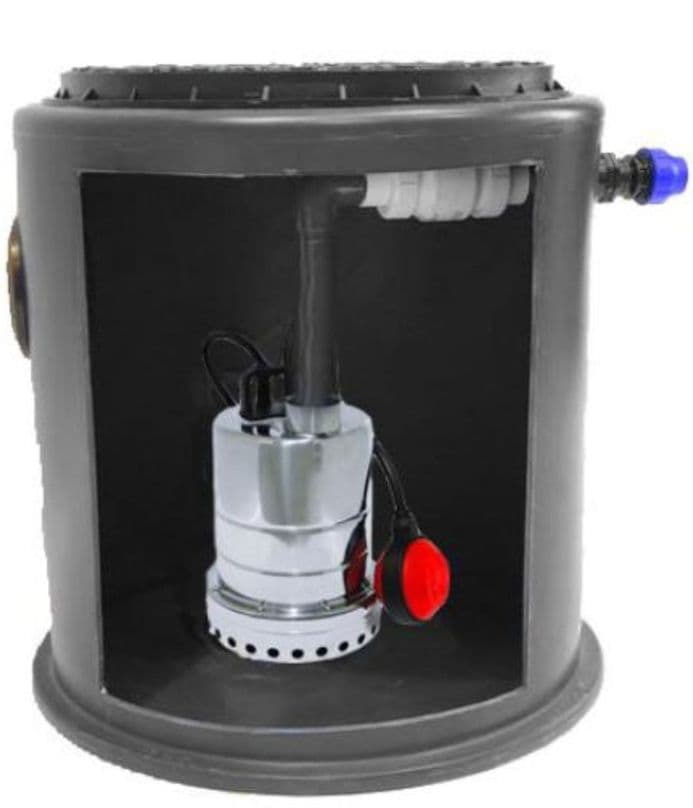

JTFS Effluent Pumping Stations 190L
JTFS Effluent is drainage systems pumping stations they come Pre-assembled for the removal of clean, grey water and Surface water where gravity flow is not possible
This small only 610mm x 635mm (190L) is great for small job's.
Part of keeping your cellar or basement dry involves a water sump pump. JTFS Effluent is specifically designed just for smaller spaces and applications.
The standard pumping station has a single Three Options to a Stainless Steel 9m lift or 18m Lift submersible pump and Stainless Steel Mizar 110V 10m lift
This Smallest Single JTFS Effluent 190L Pumping Station is a pre-assembled, ready to use package pumping station suitable for the handling of clean, grey or Light Wells. water
Suitable for Removing Grey Water From:
Drainage of Cellars & Basements, Cavity Walls,
Final Effluent from Sewage Treatment Plant
Kitchens, Dishwashers, Sinks and Showers, Light well,
Surface and Nuisance Water Drainage.
610mm Diameter x 635mm
GRP tank
Pump with float
10 metres of cable
190 Litre total capacity
Pedestrian rated cover
up to 9m lift or 18m Lift
110 mm inlet (drill on site)
Internal Pipework 1 1/4" Pipework and fittings complete
Non return valve
Available for 3 Working Days delivery
There must be 470mm below the bottom of the inlet pipe to allow for the pump to operate.
Effluent Pumping Stations include:
1 x. 610 mm diameter x 635 mm deep GRP chamber.
1 x. 32mm automatic (Suspended solids 5mm max) handling pump.
1 x. non-return valve valve.
1 x. pedestrian rated cover
1 x. 32mm outlet adaptor to connect to MDPE
An alarm is recommended for this unit.
Brand | JTPumps |
Weight | 7kg |
MPN | JTFSMiniMicroSGP5N |
