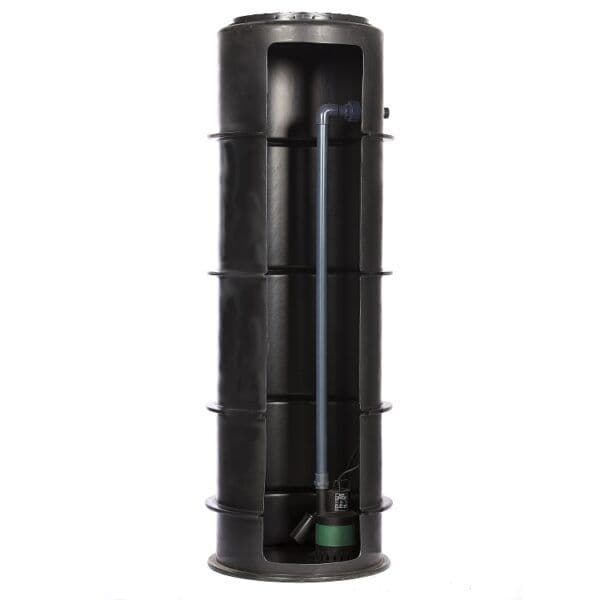

JTFS Basement Pumping Stations 600L

JTFS Basement  is drainage systems pumping stations they come Pre-assembled for the removal of clean, grey water and Surface water where gravity flow is not possible

This small only 610mm x 2000mm (600L) is great for small job's.
Part of keeping your cellar or basement dry involves a water sump pump. JTFS Basement is specifically designed just for smaller spaces and applications.

The standard pumping station has a single Stainless Steel Pump P5 or Stainless Steel Pump P6 or Mizar 60 240v or 110v submersible pump

This Smallest Single JTFS Basement 600L Pumping Station is a pre-assembled, ready to use package pumping station suitable for the handling of clean, grey or effluent water.

Suitable for Removing Grey Water From:


Drainage of Cellars & Basements, Cavity Walls,
Final Effluent from Sewage Treatment Plant

Kitchens, Dishwashers, Sinks and Showers, light wells

Surface and Nuisance Water Drainage.

610mm Diameter x 1500mm
GRP tank
Pump with float
10 metres of cable
450 Litre total capacity
Pedestrian rated cover
7.5 or 9m lift & 18m Lift
110 mm inlet (drill on site)
Internal pipework 1 1/4" Pipework and fittings complete
Non return valve
Available for 2 to 3  Working Day delivery

There must be 470mm below the bottom of the inlet pipe to allow for the pump to operate.


Effluent Pumping Stations include:

1 x. 610 mm diameter x 2000 mm deep GRP chamber.
1 x. 32mm automatic (Suspended solids 5mm max) handling pump.
1 x. non-return valve valve.
1 x. pedestrian rated cover
1 x. 32mm outlet adaptor to connect to MDPE

Pump Choice

N300 - Green plastic covered pump

SGR5 - Stainless Steel Pump

SGR6 - Stainless Steel Pump

Mizar -  Stainless Steel Pump

An alarm is recommended for this unit.
