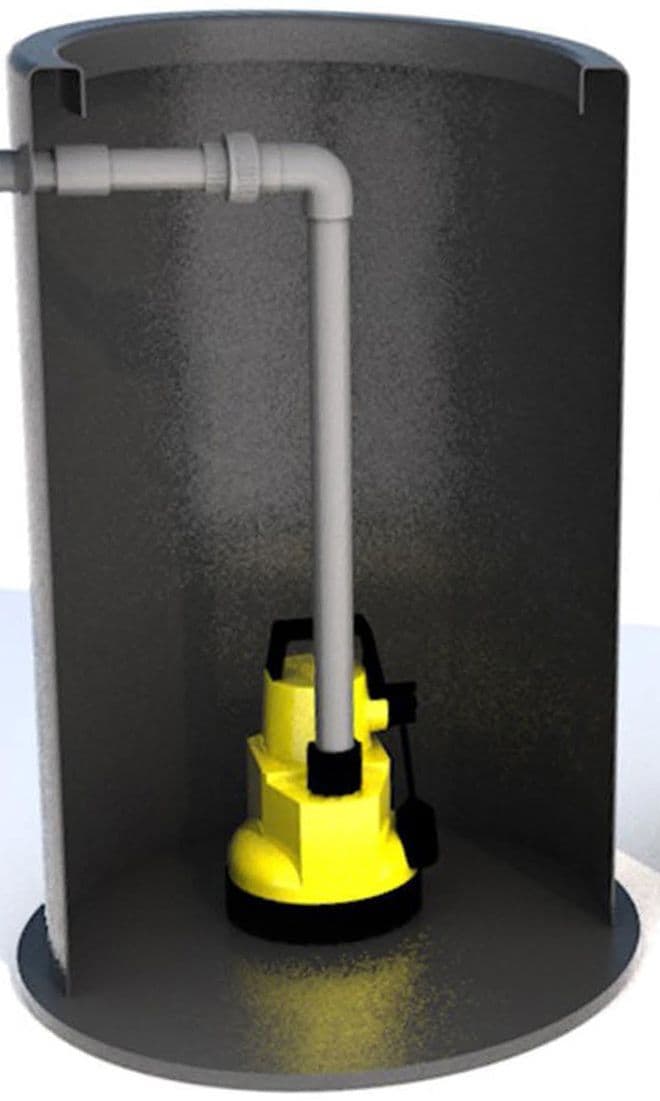

JTFS Basement Pumping Stations 300L
JTFS Basement is drainage systems pumping stations they come Pre-assembled for the removal of clean, grey water and Surface water where gravity flow is not possible
This small only 610mm x 1000mm (300L) is great for small job's.
Part of keeping your cellar or basement dry involves a water sump pump. JTFS Basement is specifically designed just for smaller spaces and applications.
The standard pumping station has a single Stainless Steel Pump P5 or Stainless Steel Pump P6 or Mizar 60 (110v) submersible pump
This Smallest Single JTFS Basement 300L Pumping Station is a pre-assembled, ready to use package pumping station suitable for the handling of clean, grey or effluent water.
Suitable for Removing Grey Water From:
Drainage of Cellars & Basements, Cavity Walls,
Final Effluent from Sewage Treatment Plant
Kitchens, Dishwashers, Sinks and Showers, light wells
Surface and Nuisance Water Drainage.
610mm Diameter x 1000mm
GRP tank
Pump with float
10 metres of cable
300 Litre total capacity
Pedestrian rated cover
up to 9m lift & 18m Lift
110 mm inlet (drill on site)
Internal pipework 1 1/4" Pipework and fittings complete
Non return valve
Available for 2 to 3 Working Day delivery
There must be 470mm below the bottom of the inlet pipe to allow for the pump to operate.
Effluent Pumping Stations include:
1 x. 610 mm diameter x 1000 mm deep GRP chamber.
1 x. 32mm automatic (Suspended solids 5mm max) handling pump.
1 x. non-return valve valve.
1 x. pedestrian rated cover
1 x. 32mm outlet adaptor to connect to MDPE
Pump Choice
N300 - Green plastic covered pump
SGR5 - Stainless Steel Pump
SGR6 - Stainless Steel Pump
Mizar - Stainless Steel Pump
An alarm is recommended for this unit.
610mm x 1000mm (internal diameter ) which is 680mm x 1040mm when you added on the ribbing and reinforcement for the tank. The lid is about 30mm deep.
Brand | JTPumps |
Weight | 7kg |
MPN | JTFSB300Mizar30240no |
