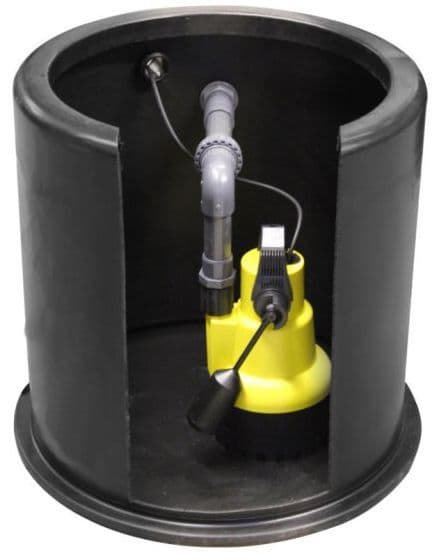

JTFS Basement Pumping Stations 190L

JTFS Basement  is drainage systems pumping stations they come Pre-assembled for the removal of clean, grey water and Surface water where gravity flow is not possible

This small only 610mm x 635mm (190L) is great for small job's.
Part of keeping your cellar or basement dry involves a water sump pump. JTFS Basement is specifically designed just for smaller spaces and applications.

The standard pumping station has a single Four Options to a Stainless Steel  7.0m or 18m Lift submersible pump and Stainless Steel Mizar 110V or 240v 10m lift

This Smallest Single JTFS Basement 190L Pumping Station is a pre-assembled, ready to use package pumping station suitable for the handling of clean, grey or Light Wells. water

Suitable for Removing Grey Water From:


Drainage of Cellars & Basements, Cavity Walls,
Final Effluent from Sewage Treatment Plant

Kitchens, Dishwashers, Sinks and Showers, Light well,

Surface and Nuisance Water Drainage.

610mm Diameter x 635mm
GRP tank
Pump with float
10 metres of cable
190 Litre total capacity
Pedestrian rated cover
7.0m or 18m Lift
110 mm inlet (drill on site)
Internal Pipework 1 1/4" Pipework and fittings complete
Non return valve

Available for 3 - 5 Working Days delivery

There must be 470mm below the bottom of the inlet pipe to allow for the pump to operate.


Effluent Pumping Stations include:

1 x. 610 mm diameter x 635 mm deep GRP chamber.
1 x. 32mm automatic (Suspended solids 5mm max) handling pump.
1 x. non-return valve valve.
1 x. pedestrian rated cover
1 x. 32mm outlet adaptor to connect to MDPE

Pump Choice

N300 - Green plastic covered pump

SGR5 - Stainless Steel Pump

SGR6 - Stainless Steel Pump

Mizar -  Stainless Steel Pump

An alarm is recommended for this unit.

610mm x 635mm (internal diameter) which is 680mm x 675mm when you added on the ribbing and reinforcement for the tank. The lid is about 30mm deep.
