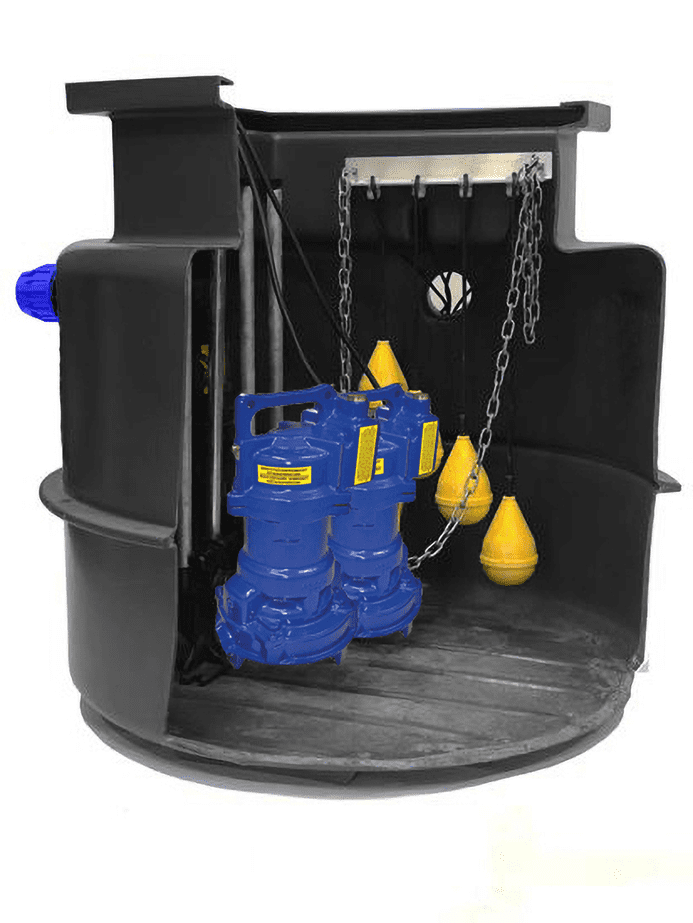

JTDual 2" Macerator Pumping Station 2 inch Twin Guide Rails

The JTDual 2" Maz with Twin Guide Rails is a Pre-assembled ready for use automatic packaged pumping station.

The JTDual 2" is a pre-assembled ready for use automatic pump station particularly suitable when the water from drains is collected at lower than the main sewer. The standard pumping station consists of Macerator submersible pumps and come complete with duty assist pump, for peace of mind

As a macerator/cutter sewage pump, this pumping station is designed to cut up solids which could potentially block other pump types, making it possible to pump them away safely – this makes it ideal for sewage pumping and effluent pumping. The tungsten carbide tipped cast iron bladed impeller, rotating against an integrated serrated suction cover, effortlessly cuts suspended solids into manageable pieces and will remain sharp and effective for a very long time.

Pump Features

Motor casing in stainless steel Volute pump in cast iron, stainless steel shaft Engine oil bath class F, 10m cable, built-in capacitor (to phase) Double seals, lip seals and reinforced carbon ceramic mechanical seal

Single-phase models with or without float Immersion depth: 10m Front outlet is ideal for installations with guide rail

10 meter cable

2 x submersible pumps
30m Lift (Head)

50mm solid handling cutts down to about 6mm

Available in 3 phases

Tank Features

1 x Polyethylene tank        Sizes see below

1 x Clear Opening size below

1 x 110mm/160mm inlets to be drilled on site

2 x Pump stool

2 x Guide rails

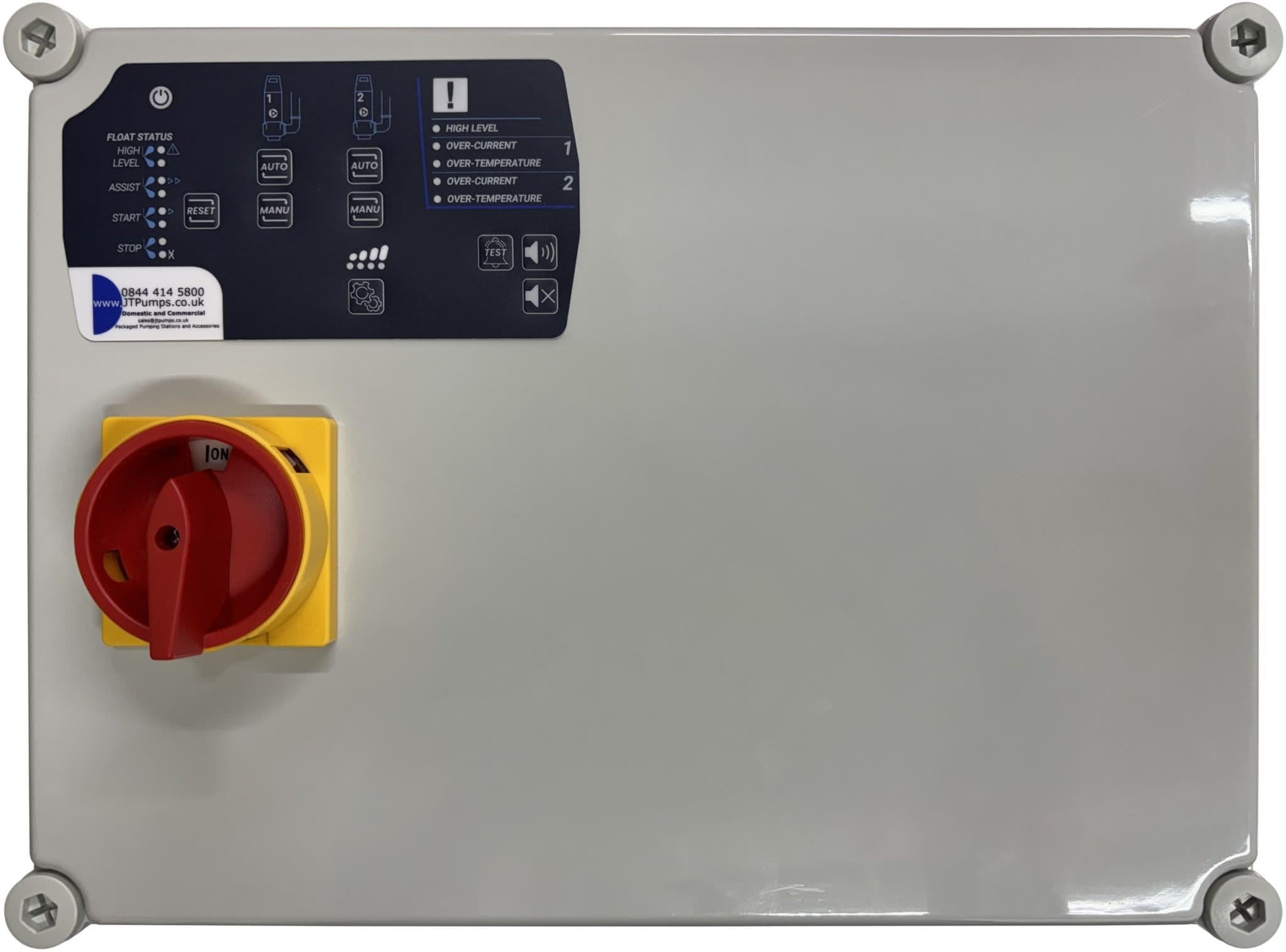

1 x Dual control panel

1 x High Water Alarm

1 x internal pipe work

4 x float switches

2 x non-returns
