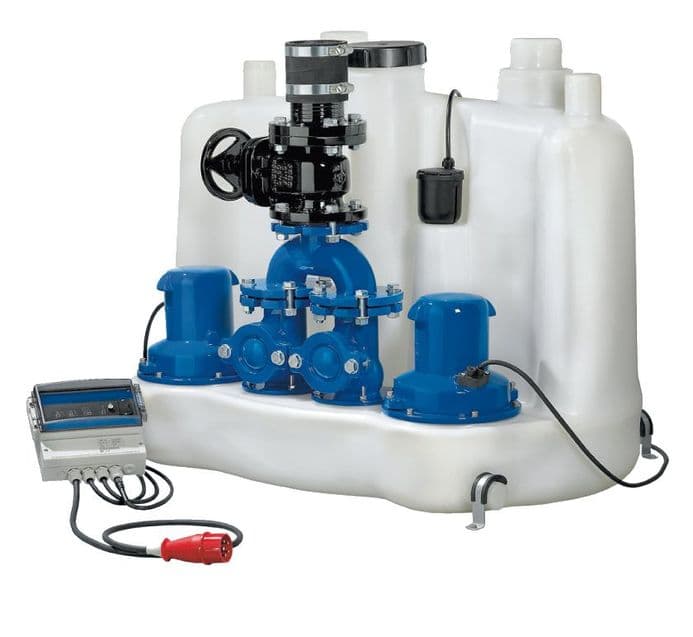

JTAtlas 320 Twin 3 Phase

The JTAtlas320 Twin is a fully automatic floor mounted twin pumping station suitable for pumping both foul and storm water to a higher level when gravity drainage is not possible and/or economical to install.

The JTAtlas320 Twin is suitable for installing either at the initial building stage or retro fitting to existing buildings and can accept waste from a bathroom, changing room, commercial premises or similar. The system consists of a 320 litre polyethylene chamber, control panel and twin automatic ‘OpenCut’ pumps.
The Atlas320 Twin is easy to install as there are a number of inlets of varying levels/sizes available (inlets to be cut on site). The system is only suitable for three phase applications, and is available in standard and high power versions for larger heads.

Key Features
• Various inlet sizes and locations
• Large storage capacity suitable for a complete one bedroom property
• Reliable twin ‘OpenCut’ pumps
• Three phase only
• Standard and High Power versions available

Application: Residential, PS, Commercial, Hospitality & Retail

Max Vertical: 9.5m   or 19m

Max Flow Rate: 15 l/sec  or 11 l/sec

Discharge Size: DN80

Number of Pumps: 2

Note 2 to 4 weeks delivery on this item
