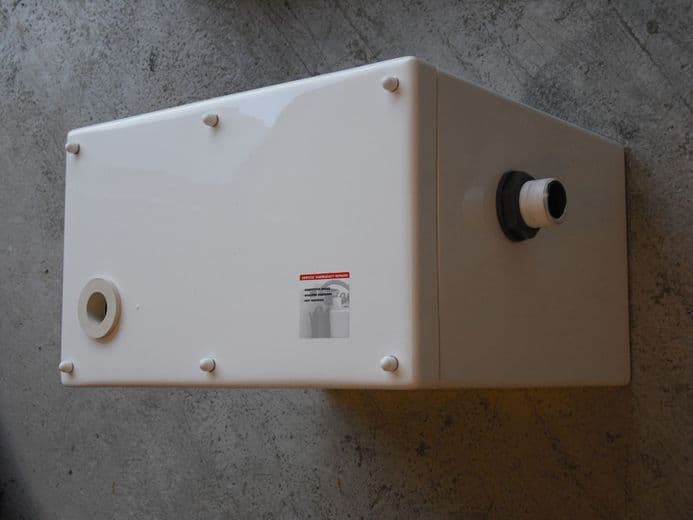

JT105HOT Hot Water pumping station

JT105HOT Hot Water pumping station

Complete wastewater pumping unit for installation at floor level, and fitted with a submersible Hot Water pump complete with 10M of cable.
This lifting station is suitable for the removal of high temperature liquids up to 90 degrees Celsius, containing solid particles up to 30 mm, from domestic and commercial appliances such as dishwashers and washing machines located below the sewer level, in accordance with EN 12050-2.
The compact chamber is ideal for accepting waste from utility sinks, commercial dishwashers, tea points or similar. Utilising ‘OpenFlow’ impellor technology the pump discharges through small bore pipe work for installation through busy service voids and roof spaces. Also suitable for drain down or emergency overflow of heating systems.

Features
Compact Box design optimises space
Fitted with JT105HOT Water pump, complete with non-return valve and level control.
Solids handling up to 30 mm
Pumping of high temperature wastewater up to a maximum of 90 °C.
‘OpenFlow’ technology offers pumping of waste water through small bore pipes
Robust GRP chamber with 60 litre storage capacity.
Variable inlet positions offer high versatility on site


Tank
Synthetic, corrosion-resistant, gas- and odour-tight tank, in accordance with EN 12050-2. Supplied as standard with pump, automatic level control and non-return valve.
The system consists of a sealed GRP chamber, internal pipe work and fittings, automatic ‘OpenFlow’ high temperature submersible pump and solvent weld outlet connection.
The JT105HOT is easy to install as inlets can be drilled to suit site requirements
Capacity: 60 litres

No. of pumps 1
Pump type Vortex
Power supply 1 PHASE
Rated current 3.9A
Motor rating 500W
Revolutions per min. 2510rpm Max.
vertical 10m Max.
flow rate 5.2 l/sec
Frequency 50 Hz
Max liquid temp. <90°C
Cable length 10m

Discharge size 1 1/2"

Size
