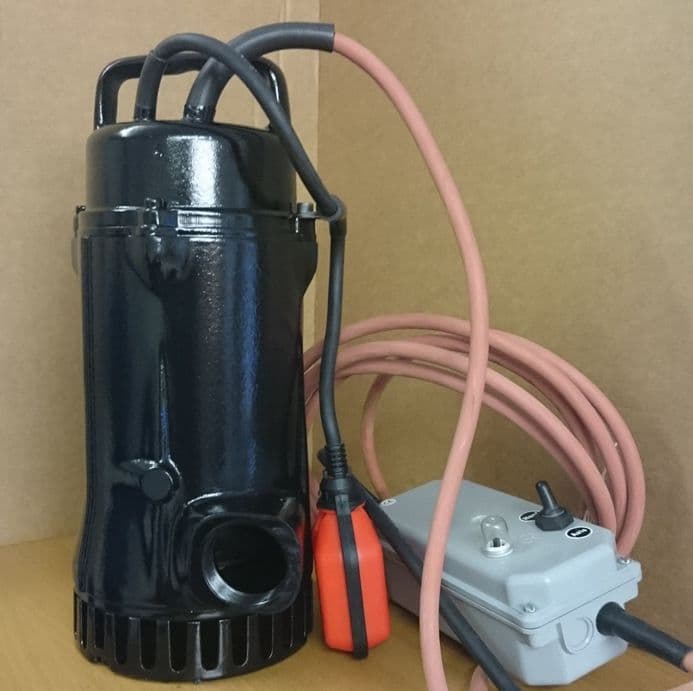

Hot H307 Auto 240v 90 degree Submersible Pumps

H 307 are submersible drainage pumps for pumping clear water  or drainage  water  with high temperatures. With the advantage of thick wall casting for dissipation of heat and viton seals, they are the ideal solution  to pump  con- densate, clear water  or drainage  water up to 90°C. The  models H 307 (normally in stock) and H 313 (call to order) are used  for pumping clear water or drainage  water  up to 10 mm  spheri- cal clearance, model  H 328 V (call to order) up to 28 mm  spherical clearance. They  are suit- able for laundries, car washes, food industries and many  other applications.

The H307 Hot Automatic pump comes with Auto to manual control box as standard.

DIN  EN  12050-2: Conformity and design approved  and controlled  by LGA, certificate No. 0220119.
Installation:  Transportable  or permanent. Models with float switch control for automatic  pump  operation, depending on liquid level  in the sump.
Pumped liquid: Condensate, clear
water  or drainage  water.
Max.  liquid temperature: 90°C
Operation:  Intermittent.

Fully  submersible, compact integrated motor-pump  unit consisting of:
Pump:  Single stage  centrifugal pump  with horizontal discharge BSP 11/2“ F.
Impeller:  H 307,  H 313:  open multi- channel  impeller,  spherical clearance
10 mm.  H 328 V: Vortex  impeller, spherical clearance 28 mm.

Motor: Fully  submersible, pressure tight electric  motor,  oil filled. Insulation class F. Degree of protection  IP 68. Cable:  BI  HF-J 4 x 1,5
Model  WA:  BI  HF-J 5 x 1,5

Shaft/Bearing: Large  diameter stainless steel  rotor shaft,  pre-lubricated bearings.
Seals: Combination of machanical seal  (silicon-carbide) and lip-seal (viton).
