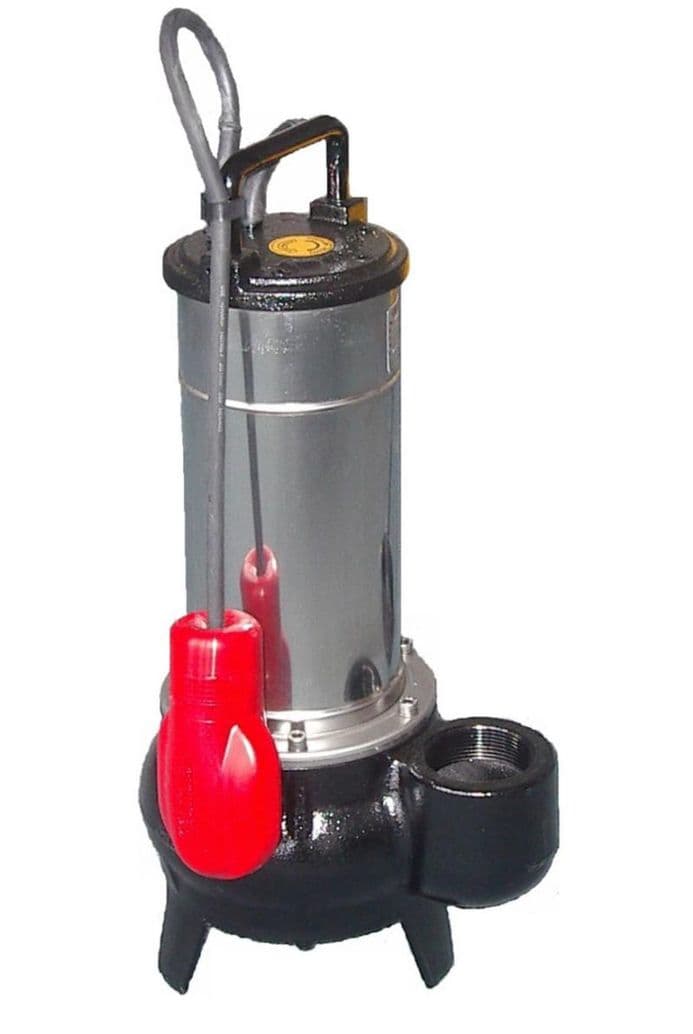

Caprari MXV09 50mm solids 10m head
Caprari MXV09 submersible sewage pump float switch as standed, 10m power cable, 240v or 3 phaze, 50mm solid handling with a 10m head
The Caprari MXV09 series pumps combines easy handling with ability to convey water containing small and fibrous solids without difficulty. They are particularly suitable for pumping waste water and sewage type applications.
Vortex Impeller
A 50mm free passage vortex impeller design ensures trouble free operation, even when pumping domestic sewage.
Automatic Operation
Automatic level control is provided by an integral float switch. the capacitor is internal for simple power connection.
**Not on the 3 Phase version**
Overload Protection
Auto-reset, thermal current overload protection is provided in the motor
Pump Features
50mm dia. solids handling capability.
Motor Power 0.9kW
Full Load Current 5.6 /3.4 Amps Max
Cast iron/Stainless steel construction
Optional float switch
Mechanical seal and lip seal
Coolant filled motor
Max liquid Temp 40'c
10 metre cable on all models
Weight 20 Kg.
Guiderail option on Horizontal discharge models
Available in 3 phase
10m head
Avaiable to order, Please ask for lead time.
Brand | Caprari |
Weight | 20kg |
MPN | CAPMXV09240A |
