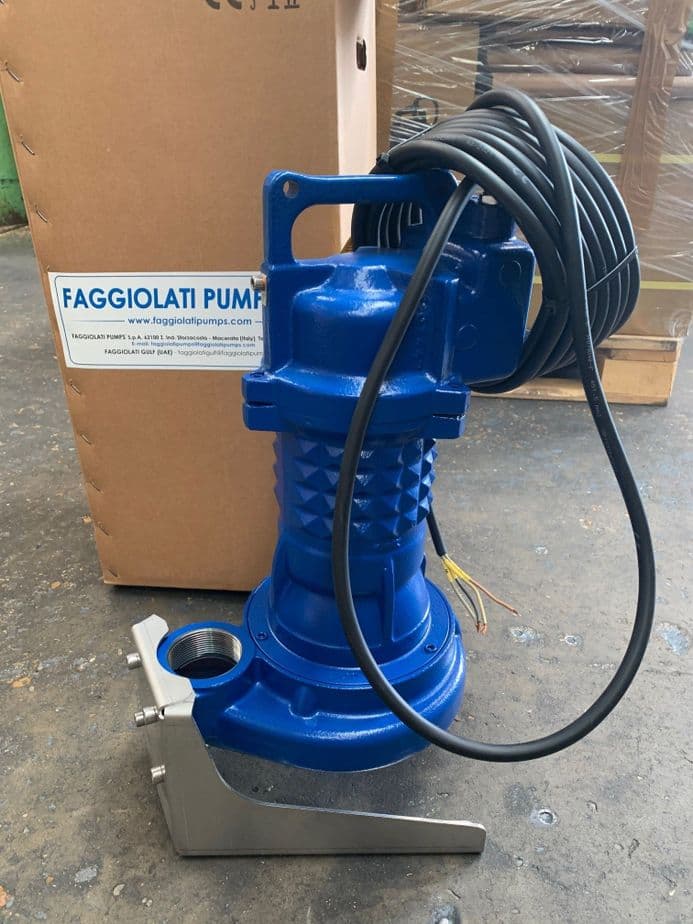

AGRIMAX Scroll type cutter impeller for agricultural waste application
£2,499.98
Inc Tax £2,999.98
The 230/1/50 or 400/3/50 Agrimax submersible cutter pump is designed for heavy duty agricultural waste water applications - zoological waste, Animal waste, Waste with straw in it also can handle String like waste
You will earn 2999 points with this purchase
The 230/1/50 or 400/3/50 Agrimax submersible macerator cutter pump is designed for heavy duty agricultural waste water applications, with a pumped media free passage of 25mm at temperatures up to 40°C.
It features a stainless steel cutter ring and scroll type cutter impeller mounted on a reduced length shaft.
Single phase models are supplied with a float switch as standard (manual versions to order) and an IP55 control box housing start and run capacitors, thermal overload and reset.
• EN-GJL-250 cast iron construction
• Mechanical seal - silicon carbide
• Lip seal and O-rings in NBR
• Oil chamber
• Continuous duty motors, Class H insulation suitable for >15 starts per hour
• Bearings are overdimensioned, life lubricated, maintenance free
• 10 metres Neoprene HO7RN-F cable as standard.
• Guide rail versions available.
Designed to work with zoological waste, Animal waste, Waste with straw in it also can handle String like waste
It features a stainless steel cutter ring and scroll type cutter impeller mounted on a reduced length shaft.
Single phase models are supplied with a float switch as standard (manual versions to order) and an IP55 control box housing start and run capacitors, thermal overload and reset.
• EN-GJL-250 cast iron construction
• Mechanical seal - silicon carbide
• Lip seal and O-rings in NBR
• Oil chamber
• Continuous duty motors, Class H insulation suitable for >15 starts per hour
• Bearings are overdimensioned, life lubricated, maintenance free
• 10 metres Neoprene HO7RN-F cable as standard.
• Guide rail versions available.
| Model | Power | Nom. kW |
Nom. Amps |
RPM | mm-Free Passage |
Weight Kg |
| AGRIMAX - M | 230/1/50 | 1.8 | 10.0 | 2850 | 25 | 42 |
| AGRIMAX - T | 400/3/50 | 2.4 | 5 | 2850 | 25 | 37 |
| AGRIMAX - TG | 400/3/50 | 2.4 | 5 | 2850 | 25 | 47 |
| Brand | JTPumps |
| Weight | 42kg |
| MPN | Agrimax400vManualFS |
