750SV 3 inch Hosetail Connection Vortex submersible pump
£635.00
Inc Tax £762.00
Suitable for sewage waste drainage applications, process and treatment works and organic farm waste and handling 46mm solids
You will earn 762 points with this purchase

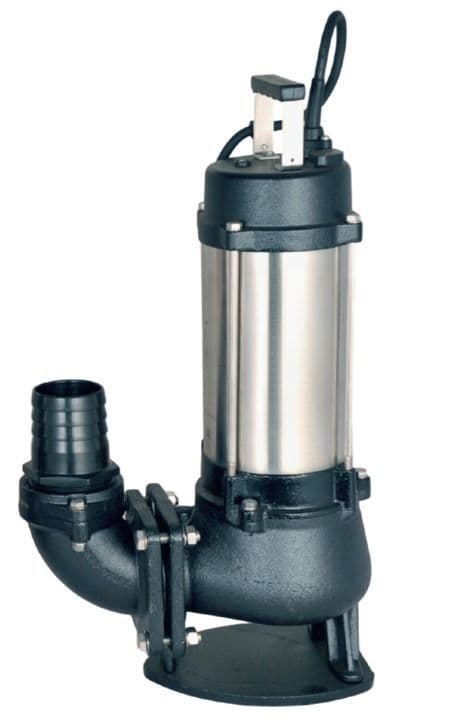

750SV – 3 inch Hosetail Connection Vortex Impeller submersible pump
750SV Vortex Impeller
Available in Manual or Auto
Available in 230v 50Hz + 110v
0.75Kw

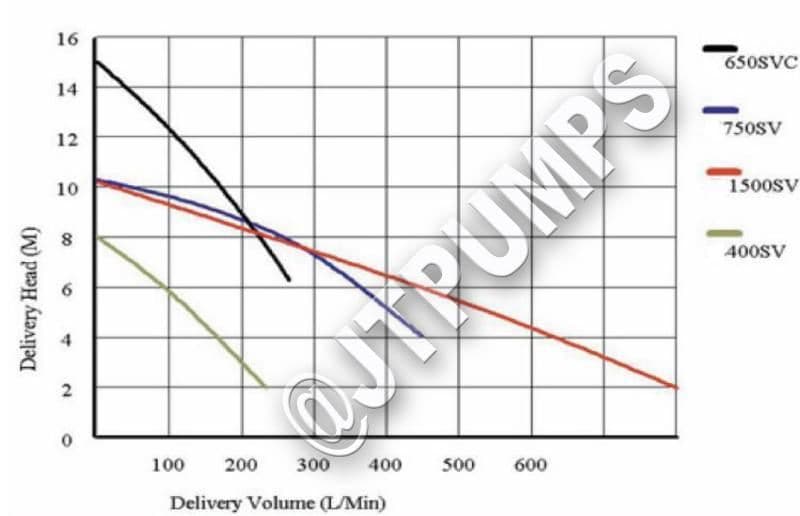

450 Litres Per Minute Maximum
8 Metres Head Maximum
3" BSP Female Outlet c/w Hosetail Connection

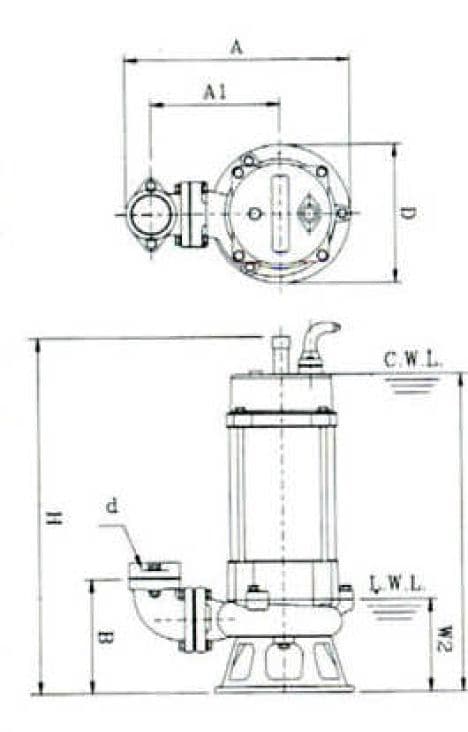

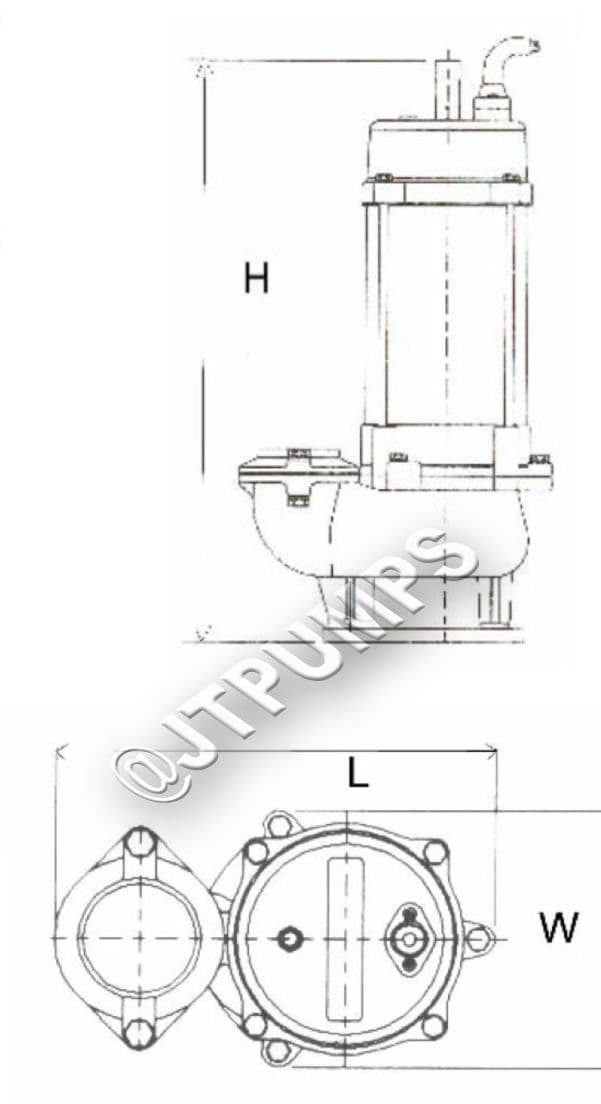

H 530mm x W 160mm x L 325mm
Complete with 10 Metres of Power Cable
Motor
Dry motor with stainless steel casing. Single phase power supply with capacitor start in models 1500 for extra starting torque. Self lubricating ball bearings. 2850Rpm. Maximum liquid temperature 40°C.
Non-Clogging Vortex Impeller
750SV Vortex Impeller
Available in Manual or Auto
Available in 230v 50Hz + 110v
0.75Kw
450 Litres Per Minute Maximum
8 Metres Head Maximum
3" BSP Female Outlet c/w Hosetail Connection
H 530mm x W 160mm x L 325mm
Complete with 10 Metres of Power Cable
- Side vertical discharge outlet with removable connection for pedestal coupling foot
- Twin mechanical seal arrangement with carbon ceramic and silicon carbide seals in oil-lubricated chamber
- Stainless steel shaft and motor casing
- Cast iron lower seal housing, top motor cover, and volute casing
- Supplied complete with 10 metres of power cable
- Hose tail connections included with all units
- Suitable for drainage, dirty water, and sewage pumping applications

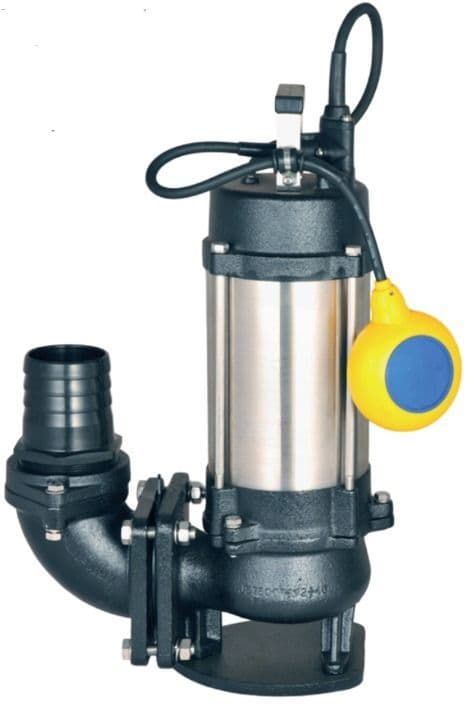

- Automatic models supplied with Float Switch float controls
- Minimum clearance of approximately 300mm required around pump for correct float operation
Motor
Dry motor with stainless steel casing. Single phase power supply with capacitor start in models 1500 for extra starting torque. Self lubricating ball bearings. 2850Rpm. Maximum liquid temperature 40°C.
Non-Clogging Vortex Impeller
| Model | kg | H x W x L mm | LM/HM | Voltage / Amps | Kw | Solids Handling |
| 750 SV 3" | 32.3 | 530x 160x 325 | 450/8 | 230v/6.8 | 0.75 | 46mm |
| 110v/13 | ||||||
| 1500 SV 3” | 44 | 610x 190x 370 | 795/9 | 230v/12.0 | 1.5 | 58mm |
| Brand | JTPumps |
| Weight | 19kg |
| MPN | JT1500SV240A |
