3" Automatic 750 SV with 3" Hose tail
£764.99
Inc Tax £917.99
You will earn 917 points with this purchase

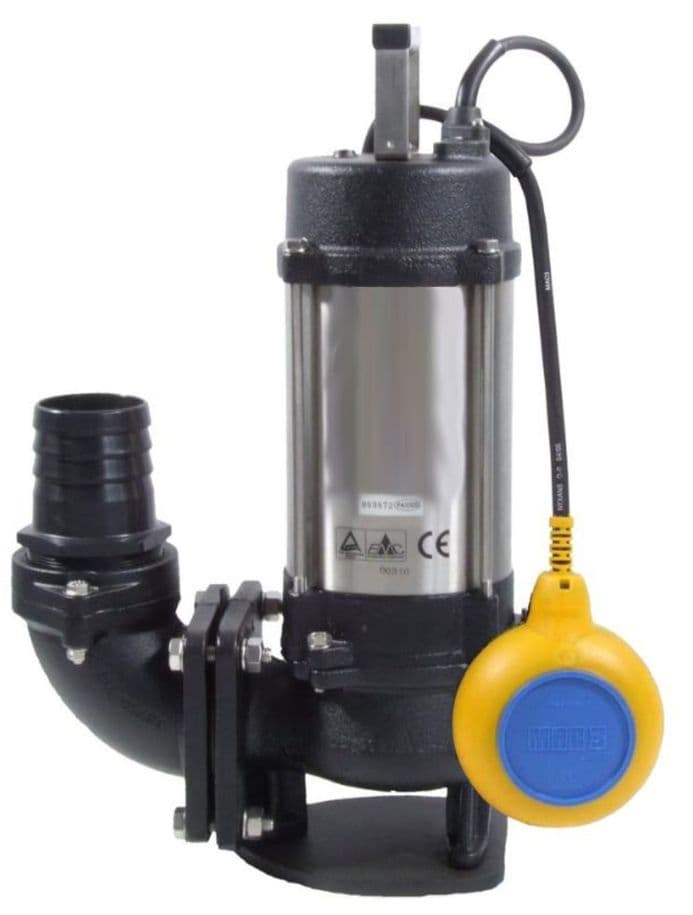

750sv – 3 inch submersible pump
Cast iron motor lid, lower motor bearing/seal housing, impeller and pump chamber. Stainless steel shaft and outer motor casing. Lip seal
followed by silicon carbide and carbon mechanical seal in a lubricated
chamber. Complete with ten metres of HO7 RN-F power cable &
male bsp hose tail to suit.
Motor
Dry motor with stainless steel casing. Single phase power supply with capacitor start in models 750 & 1500 for extra starting torque. Self lubricating ball bearings. 2850Rpm. Maximum liquid temperature
40°C.
Cast iron motor lid, lower motor bearing/seal housing, impeller and pump chamber. Stainless steel shaft and outer motor casing. Lip seal
followed by silicon carbide and carbon mechanical seal in a lubricated
chamber. Complete with ten metres of HO7 RN-F power cable &
male bsp hose tail to suit.
Motor
Dry motor with stainless steel casing. Single phase power supply with capacitor start in models 750 & 1500 for extra starting torque. Self lubricating ball bearings. 2850Rpm. Maximum liquid temperature
40°C.
|
Model |
kg |
H x W x L mm |
LM/HM |
Voltage / Amps |
Kw |
Solids Handling |
|
750 SV 3” |
32 |
530x 165x 345 |
500/9 |
230v/110v/6.8/13.0 |
0.75 |
50mm |
| Brand | JTPumps |
| Weight | 32kg |
| MPN | 750SV3240A |
